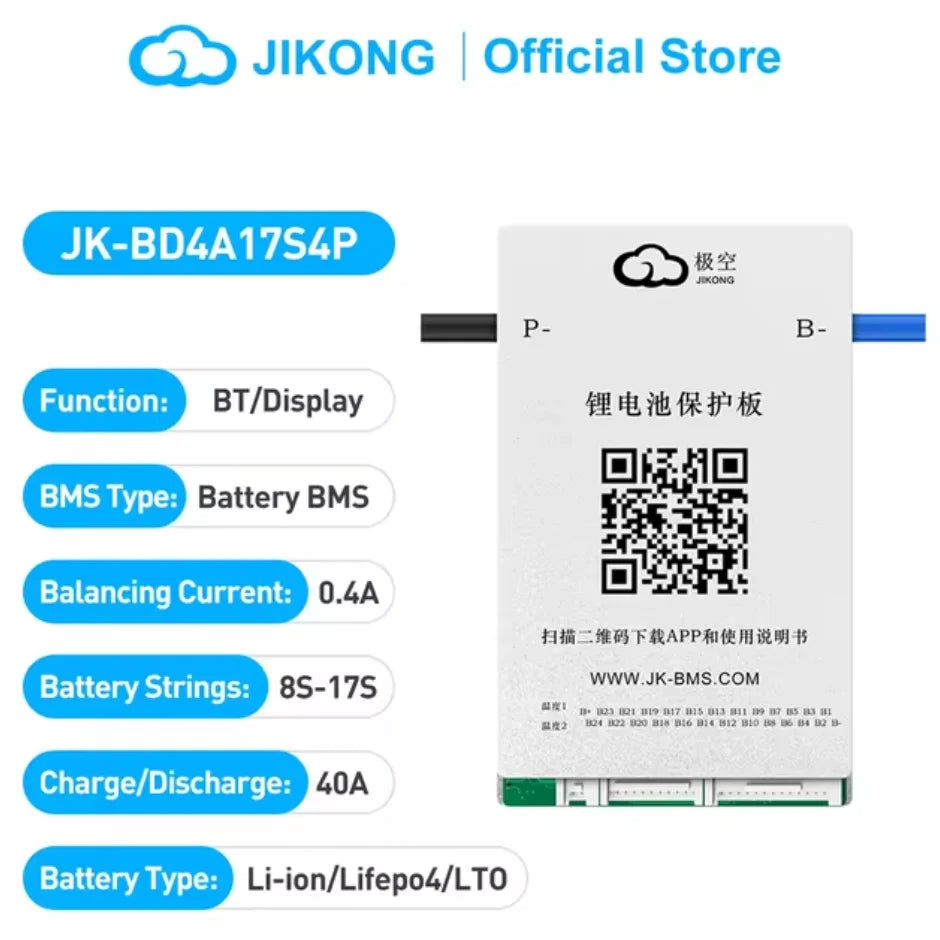

SPECIFICATIONS

Accessory Type: Charger Accessories

Active balancing: Yes

Active current: 0.4A-2A

Applications: lithium battery rated

Balance Function: Active Balanced BMS

Balancing function: Active balancing BMS

Battery series: 4S-24S

Battery type: Lithium-ion battery, iron oxide battery, lithium oxide battery

Brand: JKBMS (JIKONG BMS)

Brand Name: JIKONG

Certification: CE,CE,FCC,RoHS

Charge and Discharge Port: Common Port BMS

Charging Current: 200A

Charging/discharging current: 40A-300A

Charging/discharging port: Public port BMS

Chip protection: Yes

Function: Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection

GPS/CAN: According to Cusotmer need

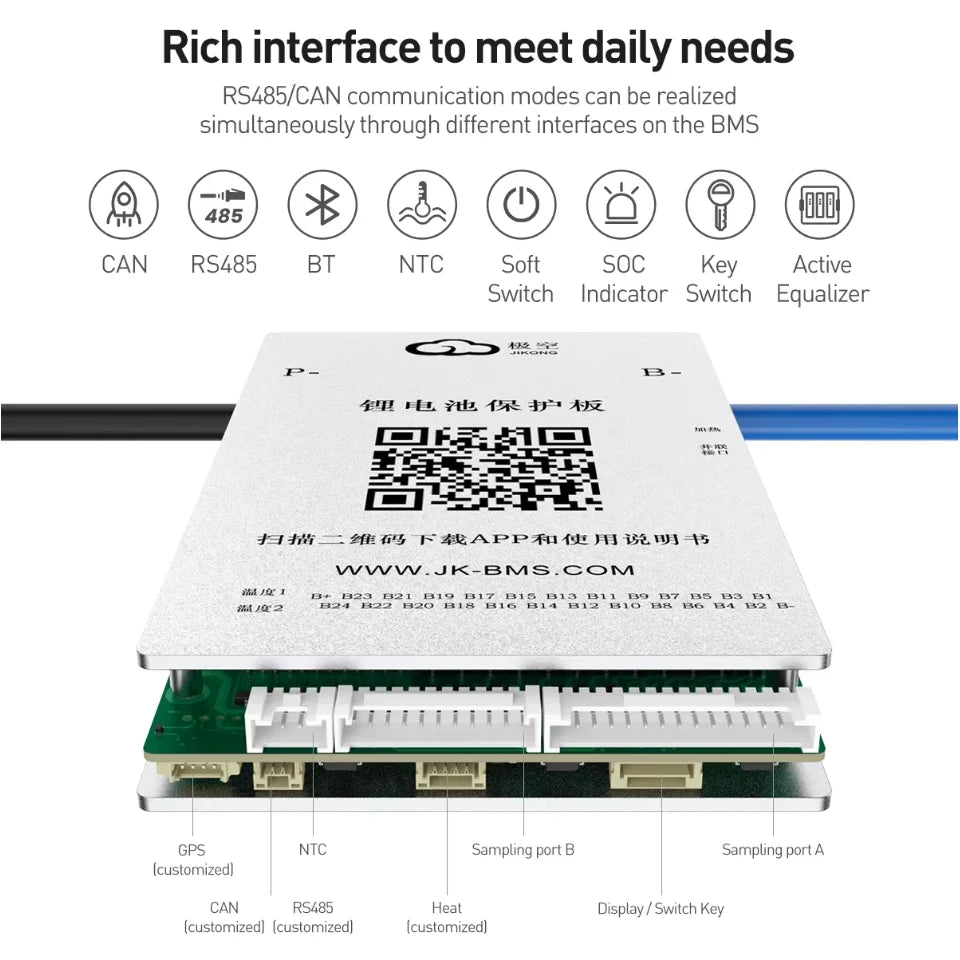

Gutter connection: RS485/Blue tooth

Handheld or intelligent: Intelligent building management system

Handware or Smart: SMART BMS

Heating function: Based on needs

High-concerned chemical: none

Low temperature protection: Yes

Origin: Mainland China,Mainland China

Overcharge protection: Yes

Overcurrent protection: Yes

Overheat protection: Yes

Overpressure protection: Yes

Support system: Android or iOS

Temperature sensor: Yes

Type: LI-ION Battery BMS

Usage Scenario: Power BMS,Energy Storage BMS,3C Digital BMS

What is active balancing (lossless balancing)

Active balancing transfers energy from cells with higher energy to cells with lower energy, achieving voltage and current balance with minimal energy loss.

Whether in charging, discharging or idle state, it will continue to work until the voltage difference is within the set range. Since it involves energy transfer without generating heat, active balancing can use a larger current (usually 1-2A) without affecting cooling. Due to the longer balancing time and larger current, it is more suitable for larger capacity battery packs.

Active balancing current: 0.4-2A, maximum charging current: 100A-300A, maximum discharge current: 100A-300A

Product description:

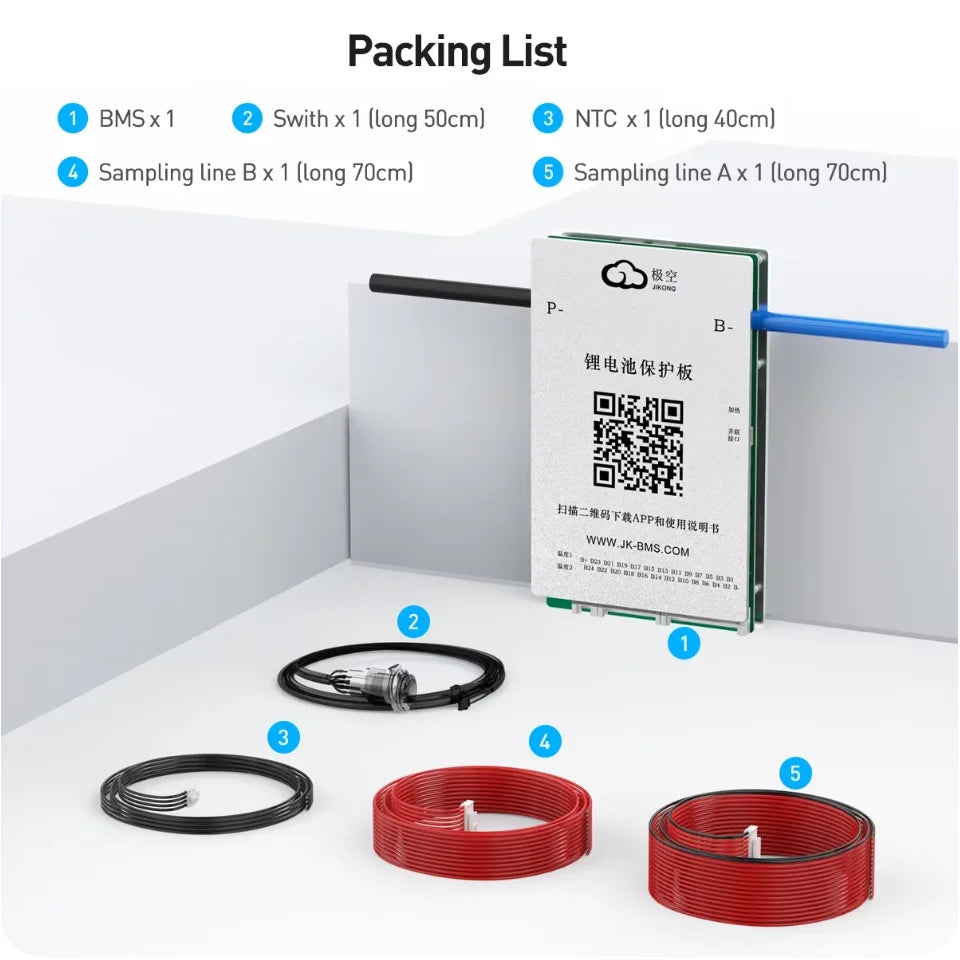

1. Package: BMS*1 、Sampling cable 75cm *2 、Temperature sensor NTC-40cm *1 、Power switch button 50cm *1 、Bolt screws*2-6 、Exclusive packaging box*1

2. The BMS protection board has its own Bluetooth function, connected to the mobile phone APP/PC, and various battery parameters are set and adjusted by yourself.

3. Optional: H—heating function, C—built-in CANBUS core, R—built-in integrated RS485 function

4. Scan the QR code on the BMS panel—download the APP and the instruction manual.

Download link - IOS: Search in APP STORE (JK BMS)

Download link - Andriod: Search in Google STORE (JK BMS)
