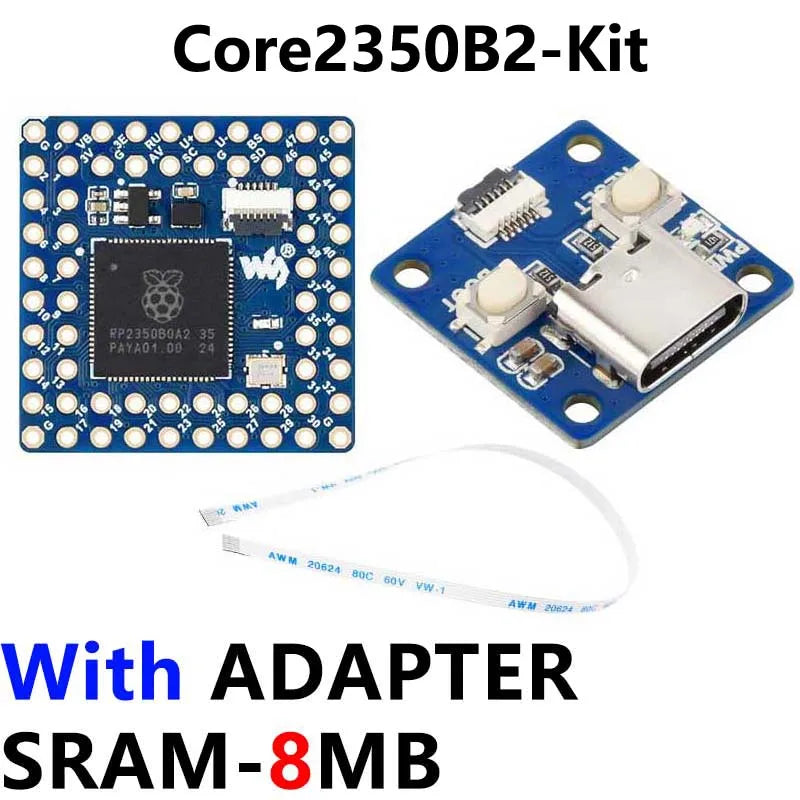

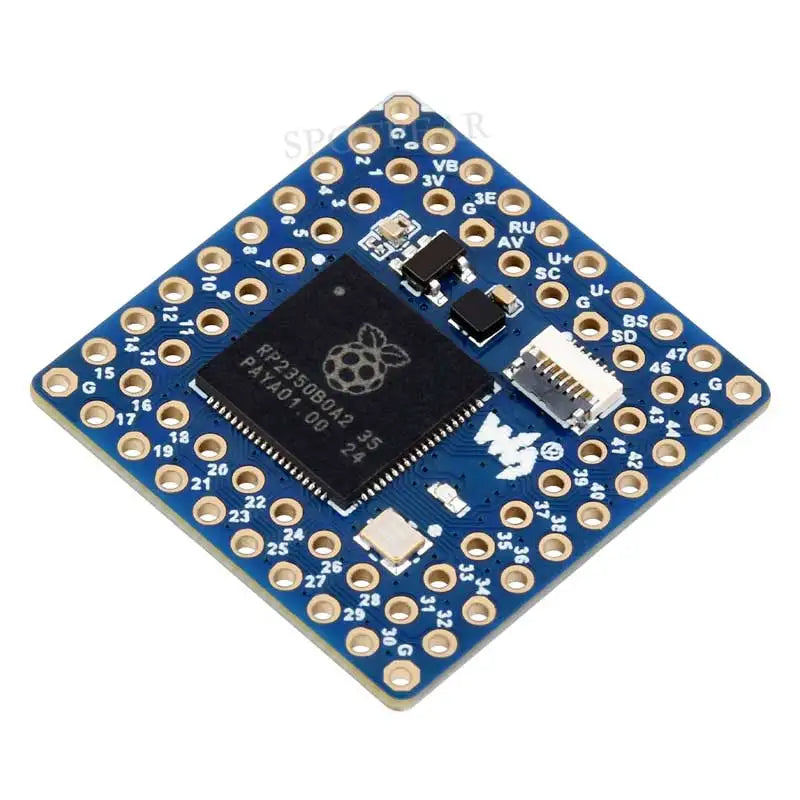

Raspberry Pi Pico 2 RP2350 Core2350B Core Board PSRAM Waveshare Core2350B

$19.83

Package Core2350B2-Kit Core2350B0-Kit Core2350B0 Core2350B2 Core2350B1 Core2350B1-Kit

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: spotpear

Choice: yes

Compatible With: Raspberry Pi

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

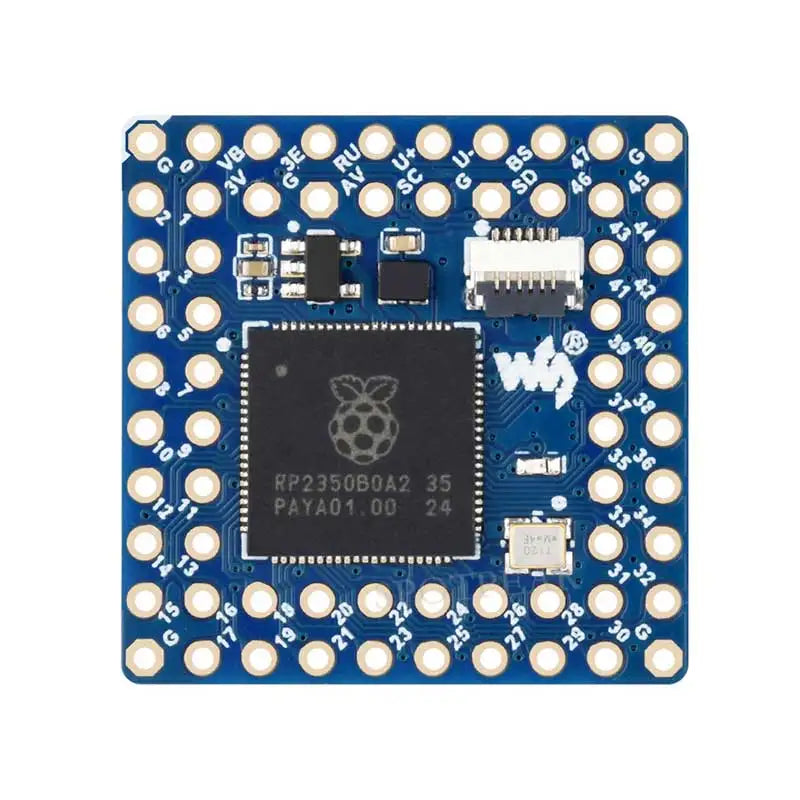

Core2350B Core Board

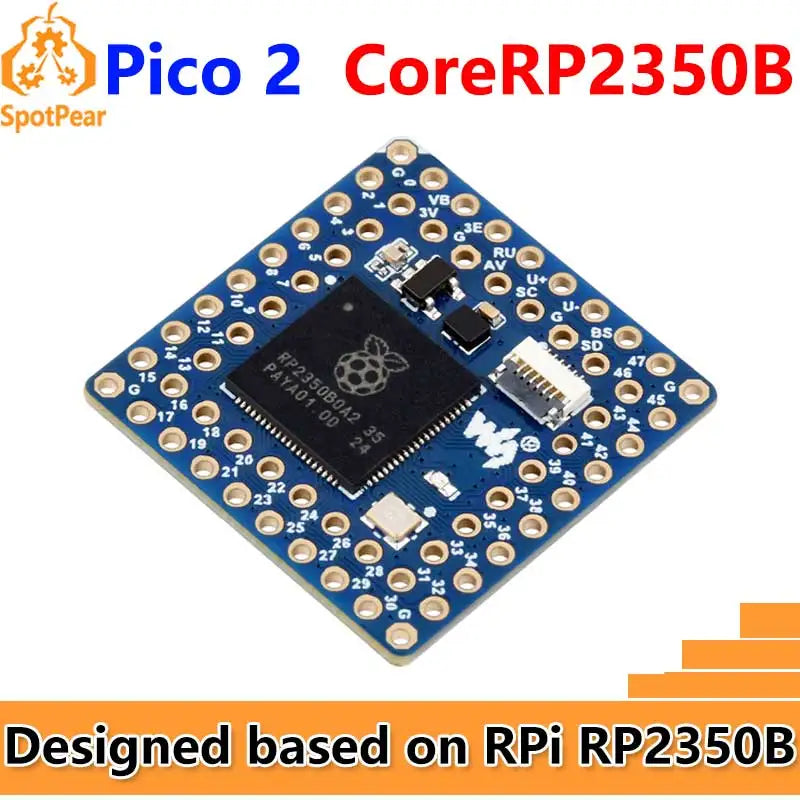

Based On Raspberry Pi RP2350B Microcontroller

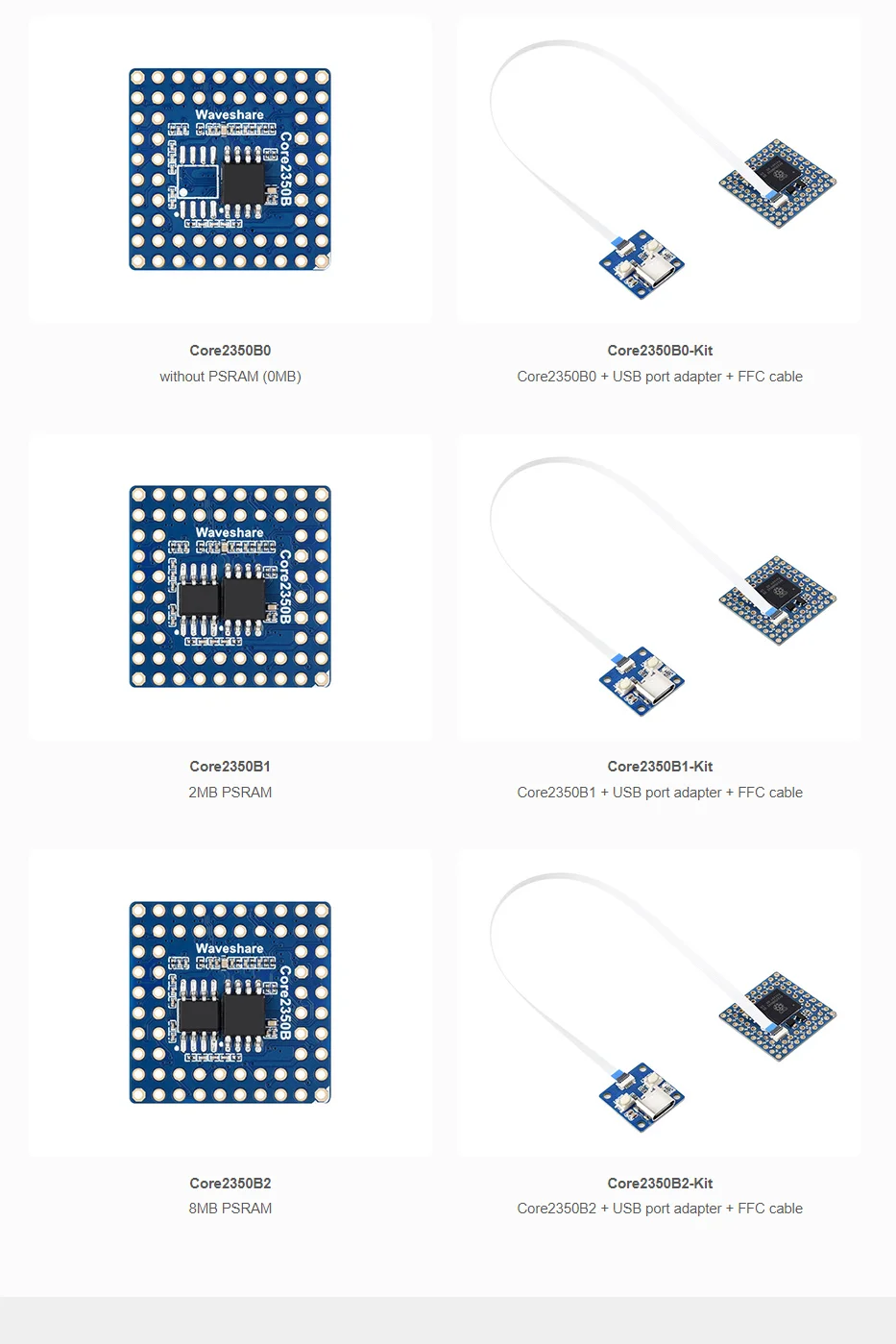

Version Options

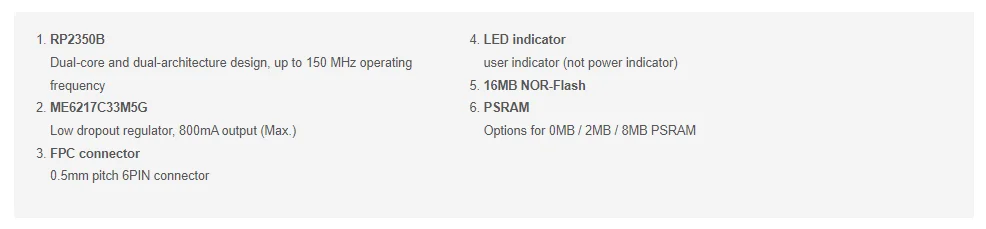

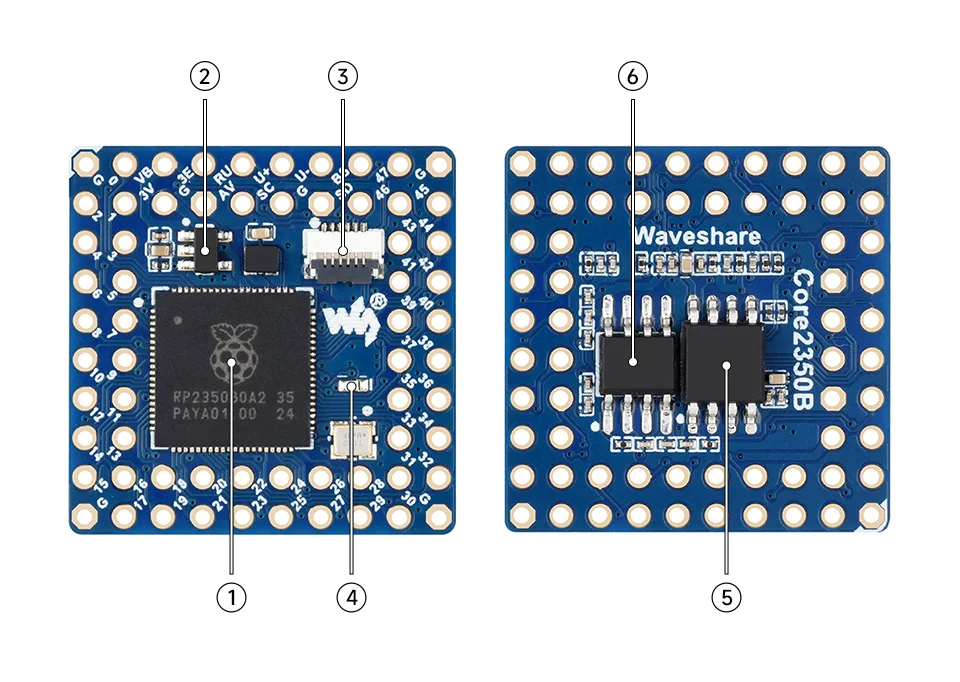

Board Specifications

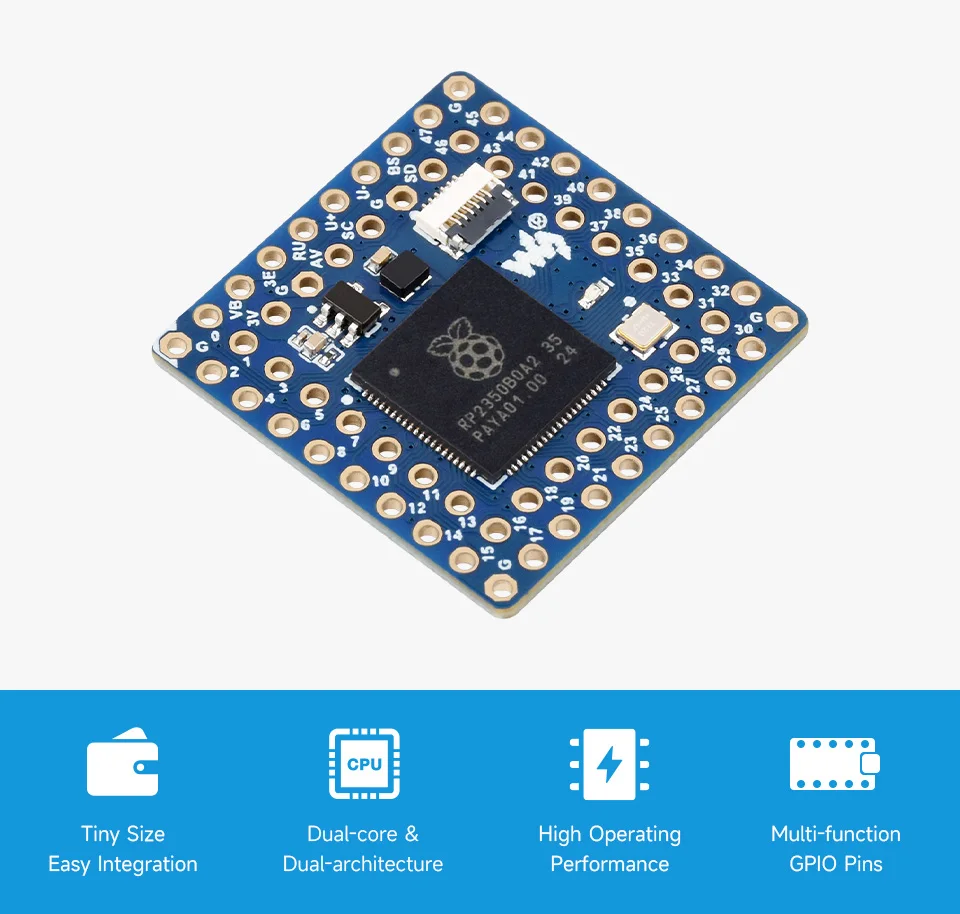

This product is a low-cost, high-performance MCU board designed by Waveshare. It features a compact size with onboard RP2350B main controller, adapting 48 multi-function GPIO pins for easy development and integration.

RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz

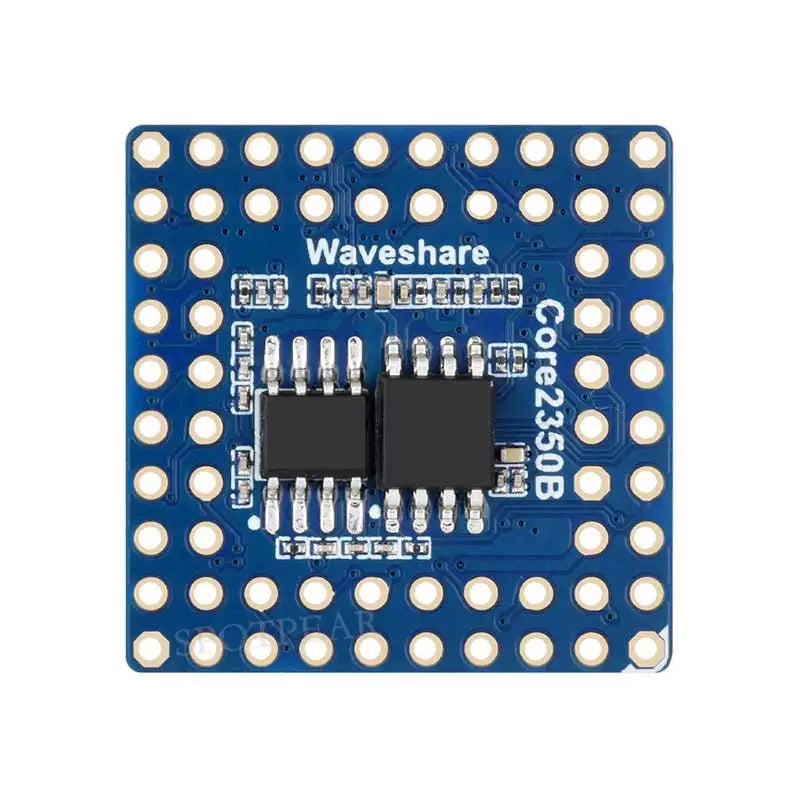

Options for 0MB / 2MB / 8MB PSRAM, with onboard 520KB SRAM and 16MB Flash memory

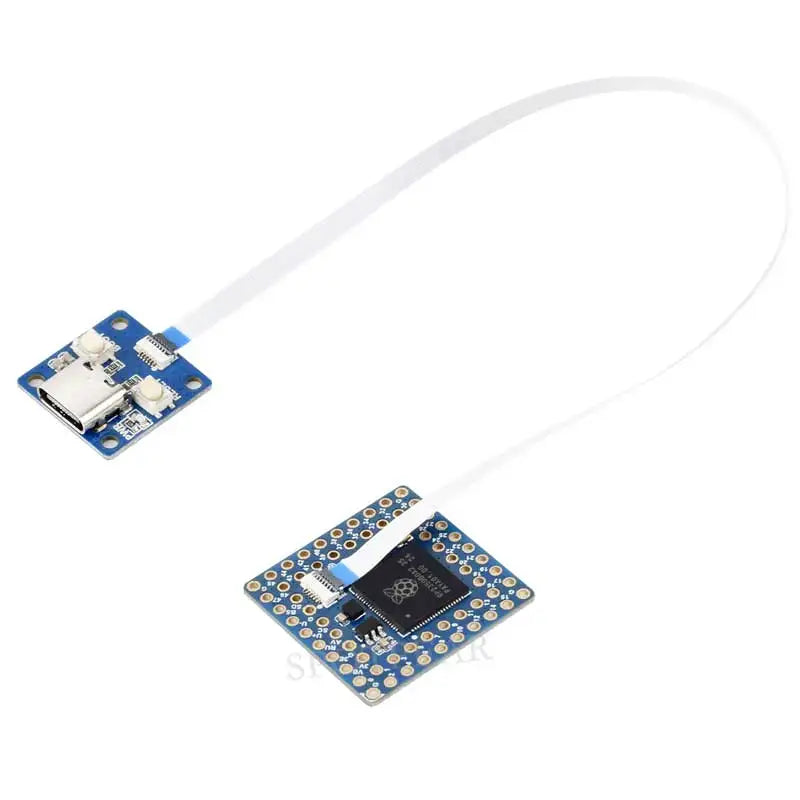

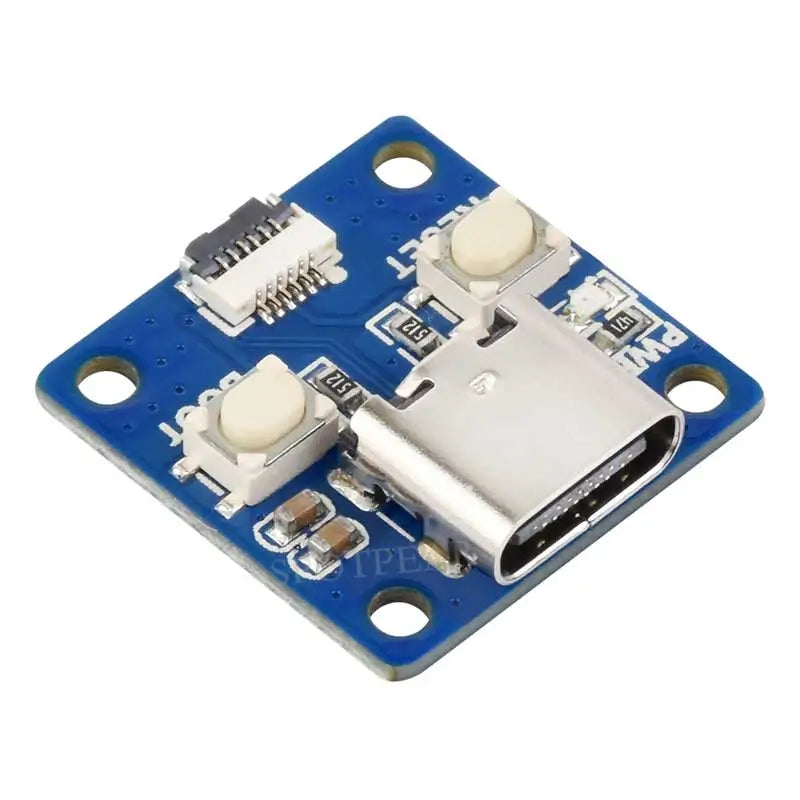

Onboard FPC 6PIN connector, adapting USB Type-C port via adapter board

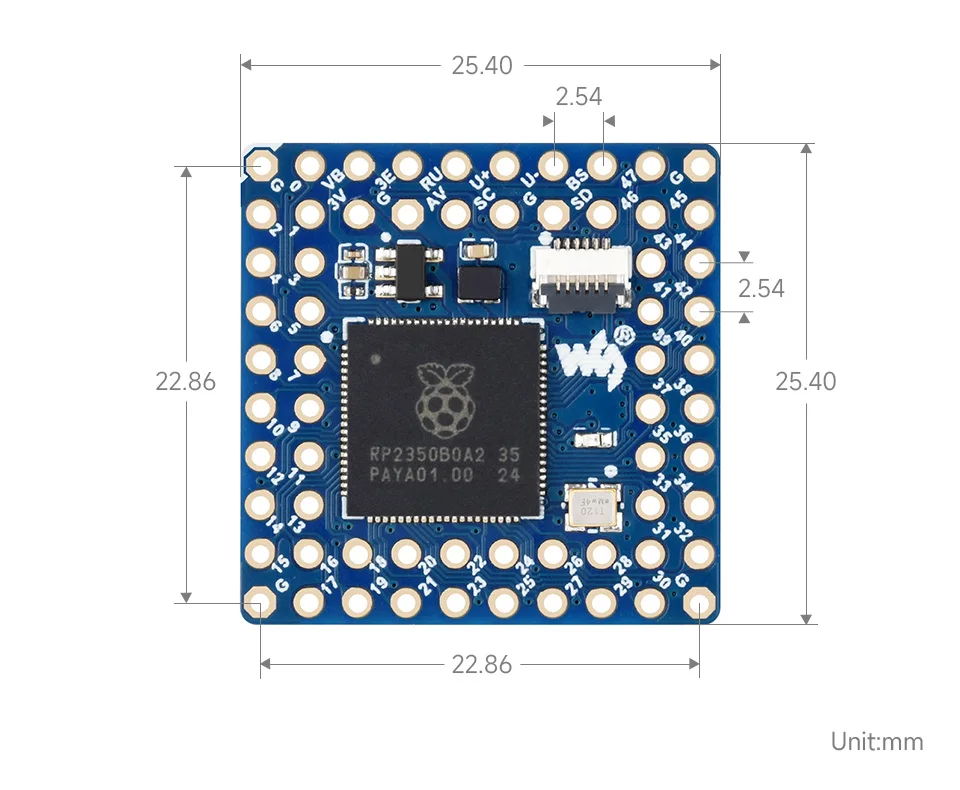

64 pins arranged in a standard 2.54 mm pitch for easy integration into carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB

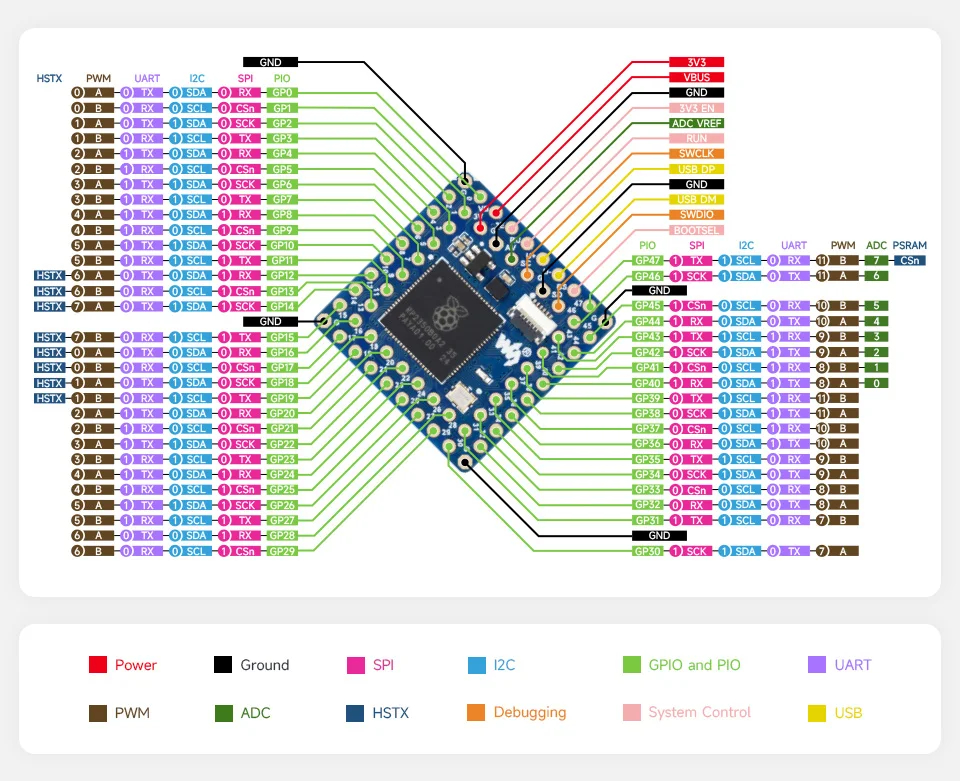

48 × multi-function GPIO pins
2 × I2C, 2 × UART, 8 × 12-bit ADC, 24 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
12 × Programmable I/O (PIO) state machines for custom peripheral support

Dual-Core, Dual-Architecture

The Unique Dual-Core, Dual-Architecture Capability Of RP2350B Allows Users To Choose Between A Pair Of Industry-Standard Arm Cortex-M33 Cores, And A Pair Of Open-Hardware Hazard3 Cores, Giving Developers A Chance To Experiment With The RISC-V Architecture In A Stable, Well-Supported Environment
