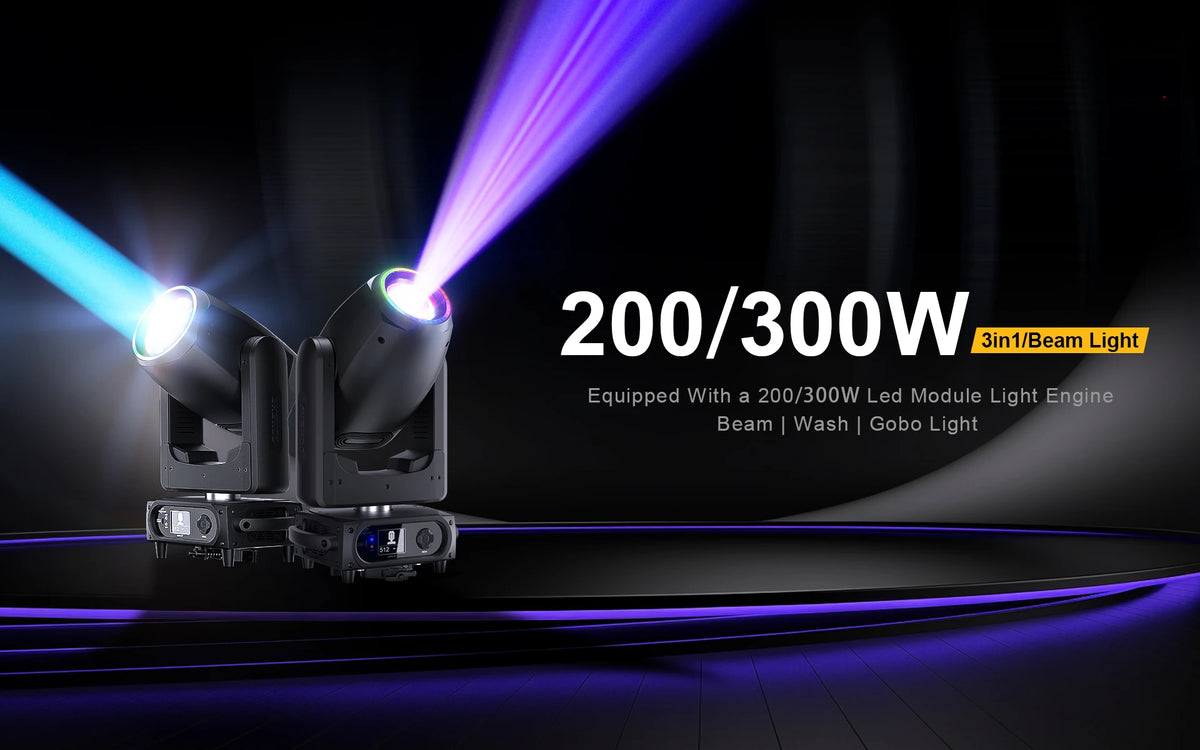

LED 200W / 300W / Beam / 3in1 Beam Light

LED 200W / 300W light, equipped with a 200W / 300W module light engine,

significantly improves the brightness of this product compared to traditional stage lighting.

The high-power LED module of 200W / 300W ensures strong light output,

making it easy to handle even large stages or long-distance lighting needs,

ensuring that every detail on the stage is clear and visible,

bringing the audience a more delicate and realistic visual experience.

Product Features

This lamp is not only suitable for large-scale stage performances such as professional theaters, concerts,

and concerts, but also for various occasions such as wedding celebrations, corporate annual meetings,

product launches, etc. Its powerful beam effect, flexible adjustment ability, high brightness,

and long-distance illumination ability enable it to achieve the best results in various scenes,

adding a bright color to your activities.

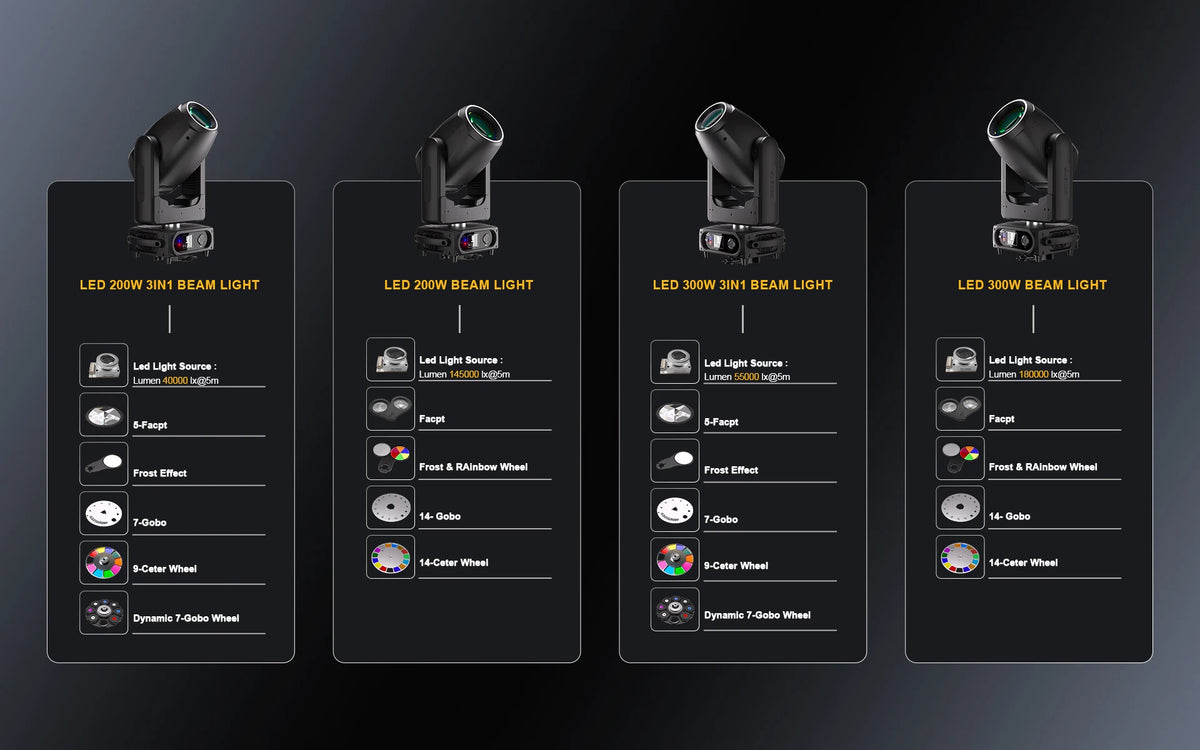

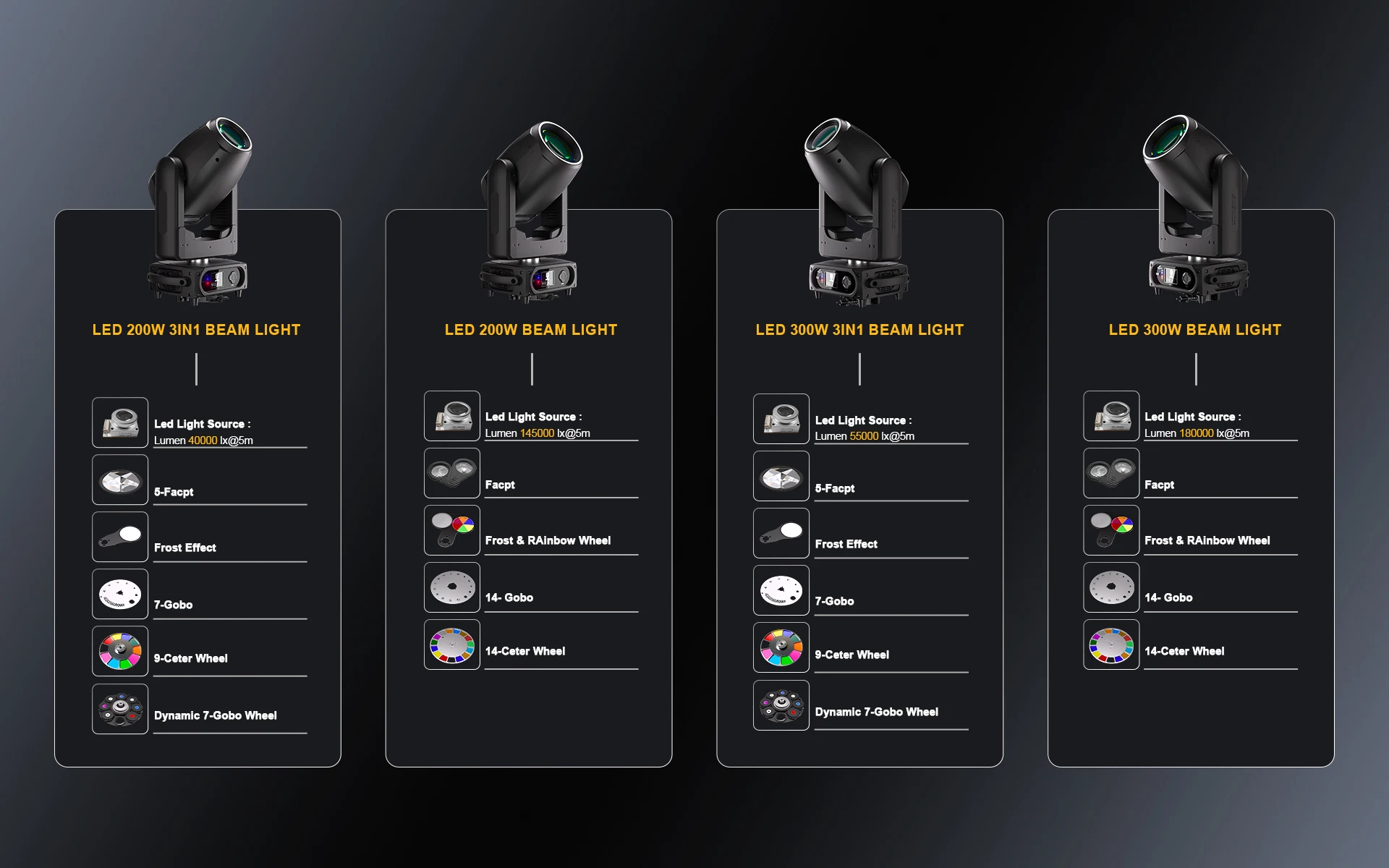

Technical Parameter

200W Beam Moving Head Light

Light source parameters
Light source:	200W LED white color
Color Temperature:	9100-9500K
Luminous lumens/5m:	145000lx/5m
Beam Angel:	2°
Lifespan light source:	20000h
Diameter of the outgoing lens:	150mm
Dimming:	0-100% linear dimming
CRI:	Min.Ra 70
Optical effect
Gobos 1:	14 gobos + Open
Colors:	14 colors + Open
Prism 1:	8 prism
Prism 2:	8+16+24 prism

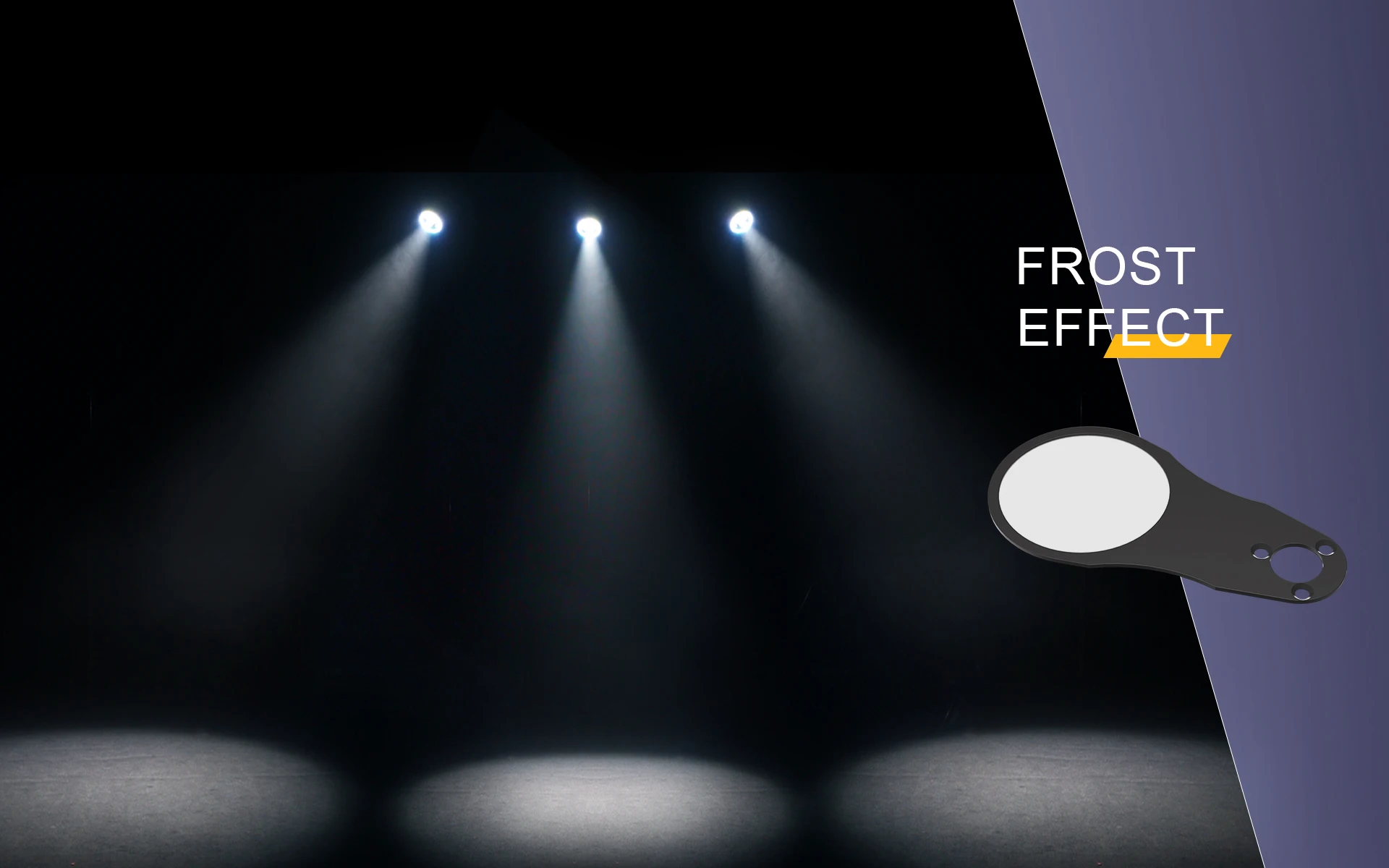

Frost:	Simplefrost
Color effect:	6 colors
Security System
Safety Item:	Over current and voltage protection
Degree Of Protection:	IP20
Operating Temperature:	-15℃~45℃
Interface And Control System

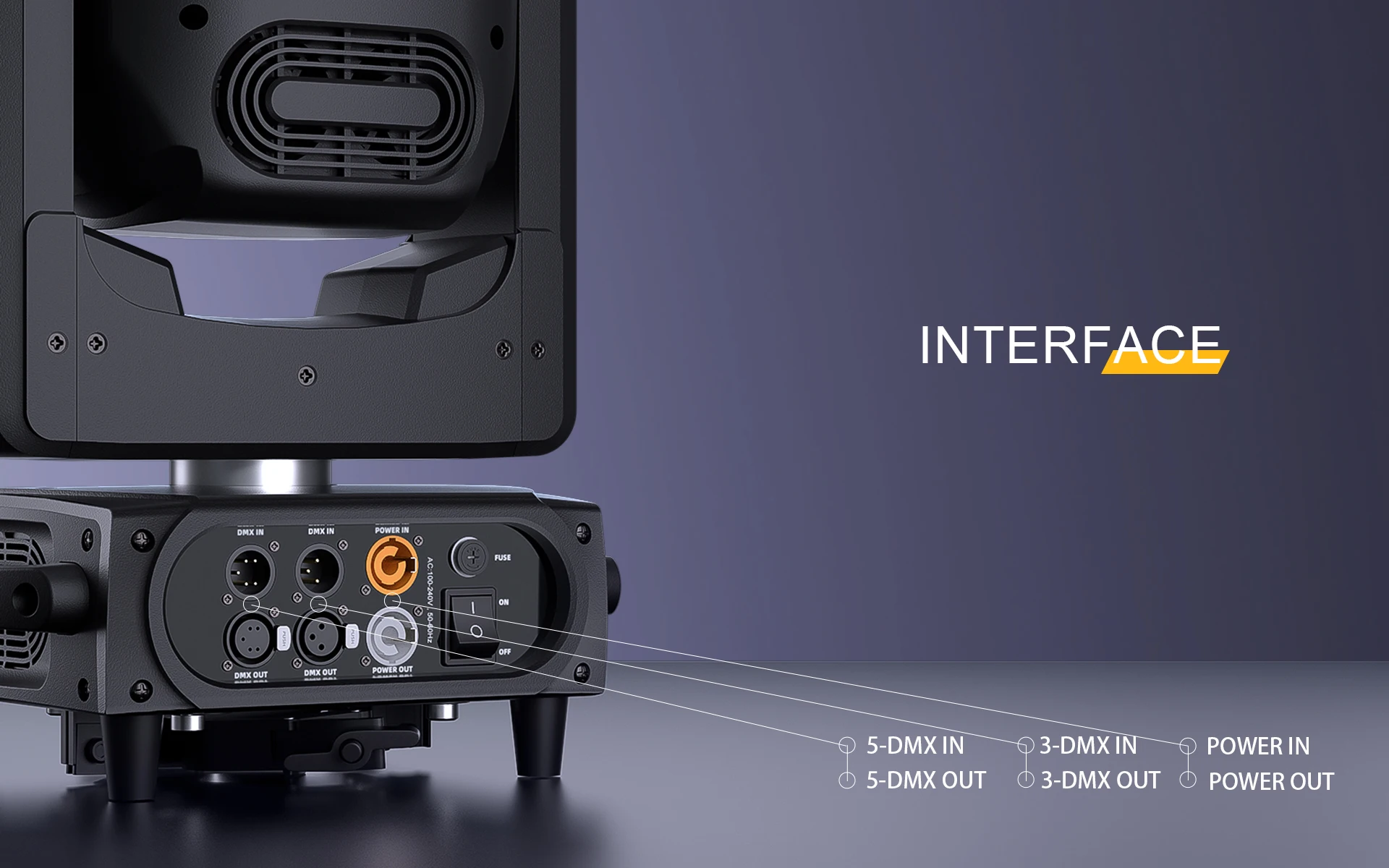

Control Interface:	3-pin and 5-pin XLRIn/Out
DMX Channel:	19CH
Power Interface:	PowerConin/Out
Cooling System
Cooling Method:	Air cooled
Structure:	120mm plug-in heat dissipation layer
Bentilation Fan:	60mm fan Inx2 & outx2
Power Consumption
Working Power:	100~240V AC 50/60HZ
Power Consumption:	Max 350W
Physical Parameters

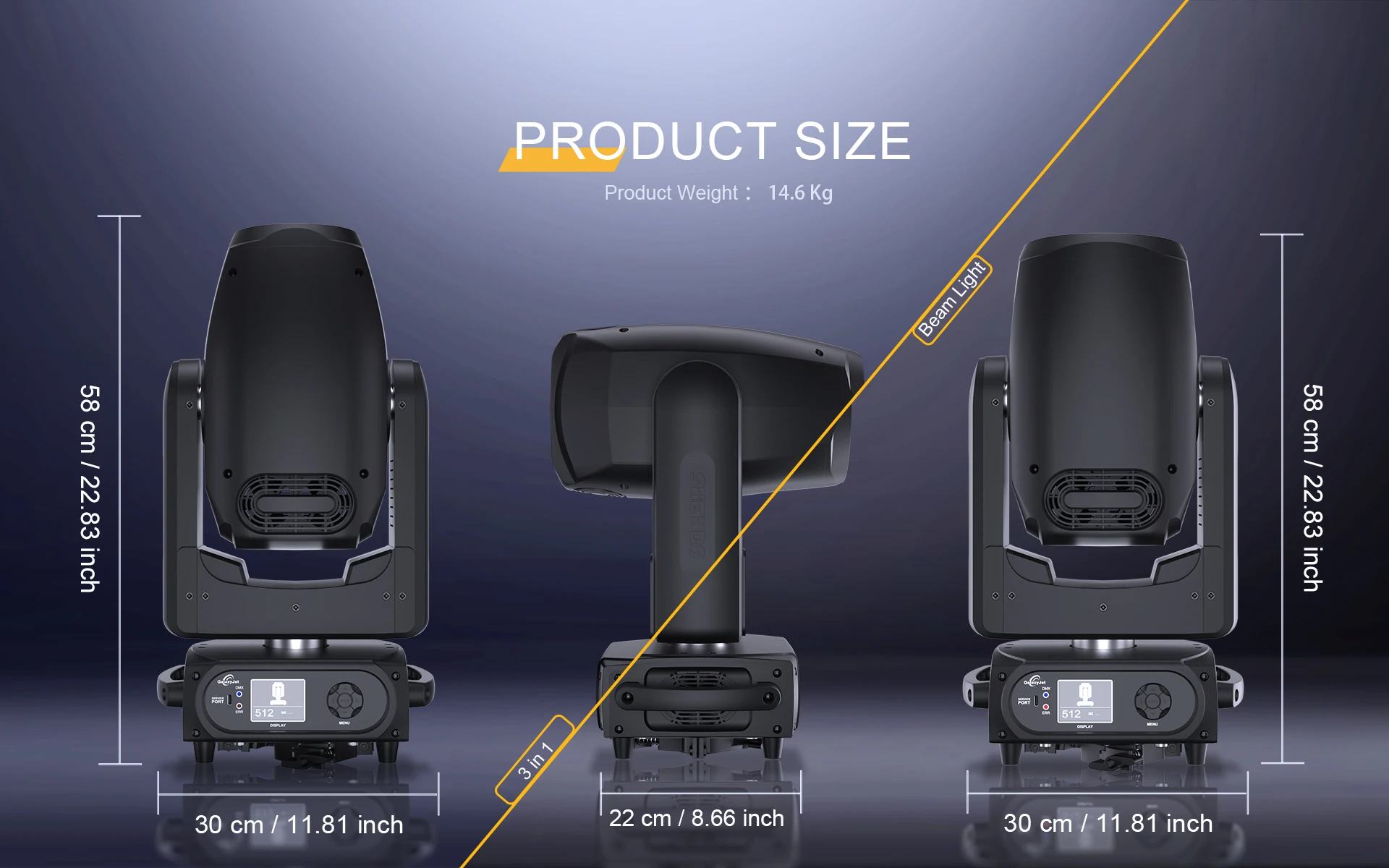

Product Size :	30x22x58cm / 11.8x8.6x22.8inch
Product Weight:	14.6 Kg
Pack Size:	59x41x38.5cm/23.2x16.1x15.1inch
Package Weight:	17.54 kg

200W 3in1 Moving Head Light

Light source parameters
Light source:	200W LED white color
Color Temperature:	9100-9400K
Luminous lumens/5m:	40000lx
Beam Angel:	2.2°~22°
Lifespan light source:	20000h
Diameter of the outgoing lens:	100mm
Dimming:	0-100% linear dimming
CRI:	Min.Ra 70
Optical effect
Gobos 1:	5 gobos + Flame pattern + Open
Gobos 2:	7 Gobos rotating +Open
Colors:	9 colors + Open
Prism 1:	5 prism
Frost:	Simple frost
Security System
Safety Item	Over current and voltage protection
Degree Of Protection	IP20
Operating Temperature	-15℃~45℃
Interface And Control System
Control Interface	3-pin and 5-pin XLRIn/Out
DMX Channel	20/23CH
Power Interface	PowerCon
Cooling System
Cooling Method	Air cooled
Structure	120mm plug-in heat dissipation layer
Bentilation Fan	60mm fan Inx2 & outx2
Power Consumption
Working Power	100~240V AC 50/60HZ
Power Consumption	Max 300W
Physical Parameters
Product Size	30x22x58cm / 11.8x8.6x22.8inch
Product Weight	14.6 Kg
Pack Size	59x41x38.5cm/23.2x16.1x15.1inch
Package Weight	17.54 kg

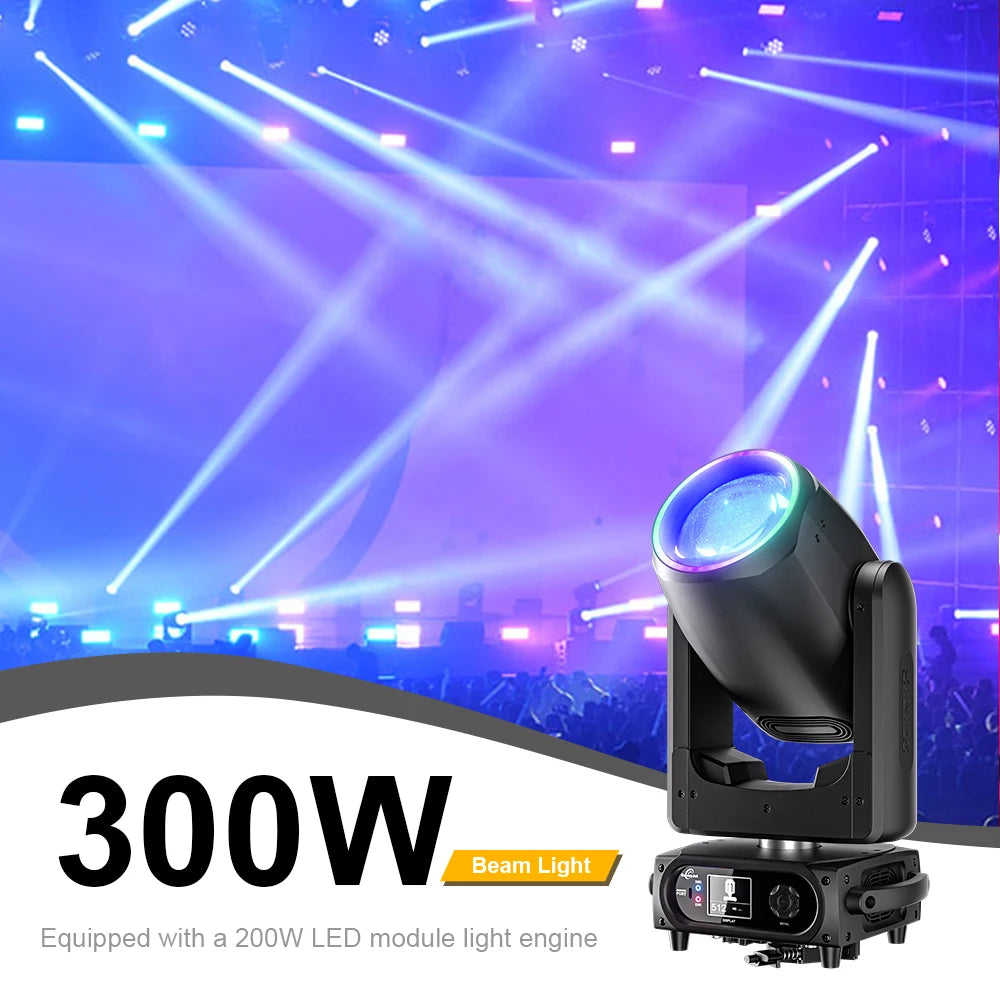

300W Beam Moving Head

Light source parameters
Light source:	300WLED white color
Color Temperature:	9100-9500K
Luminous lumens/5m:	180000lx/5m
Beam Angel:	2°
Lifespan light source:	20000h
Diameter of the outgoing lens:	150mm
Dimming:	0-100% linear dimming
CRI:	Min.Ra 70
Optical effect
Gobos 1:	14 gobos + Open
Colors:	14 colors + Open
Prism 1:	8 prism
Prism 2:	8+16+24 prism
Frost:	Simplefrost
Color effect:	6 colors
Security System
Safety Item:	Over current and voltage protection
Degree Of Protection:	IP20
Operating Temperature:	-15℃~45℃
Interface And Control System
Control Interface:	3-pin and 5-pin XLRIn/Out
DMX Channel:	19CH
Power Interface:	PowerConin/Out
Cooling System
Cooling Method:	Air cooled
Structure:	120mm plug-in heat dissipation layer
Bentilation Fan:	60mm fan Inx2 & outx2
Power Consumption
Working Power:	100~240V AC 50/60HZ
Power Consumption:	Max 450W
Physical Parameters
Product Size :	30x22x58cm / 11.8x8.6x22.8inch
Product Weight:	14.6 Kg
Pack Size:	59x41x38.5cm/23.2x16.1x15.1inch
Package Weight:	17.54 kg

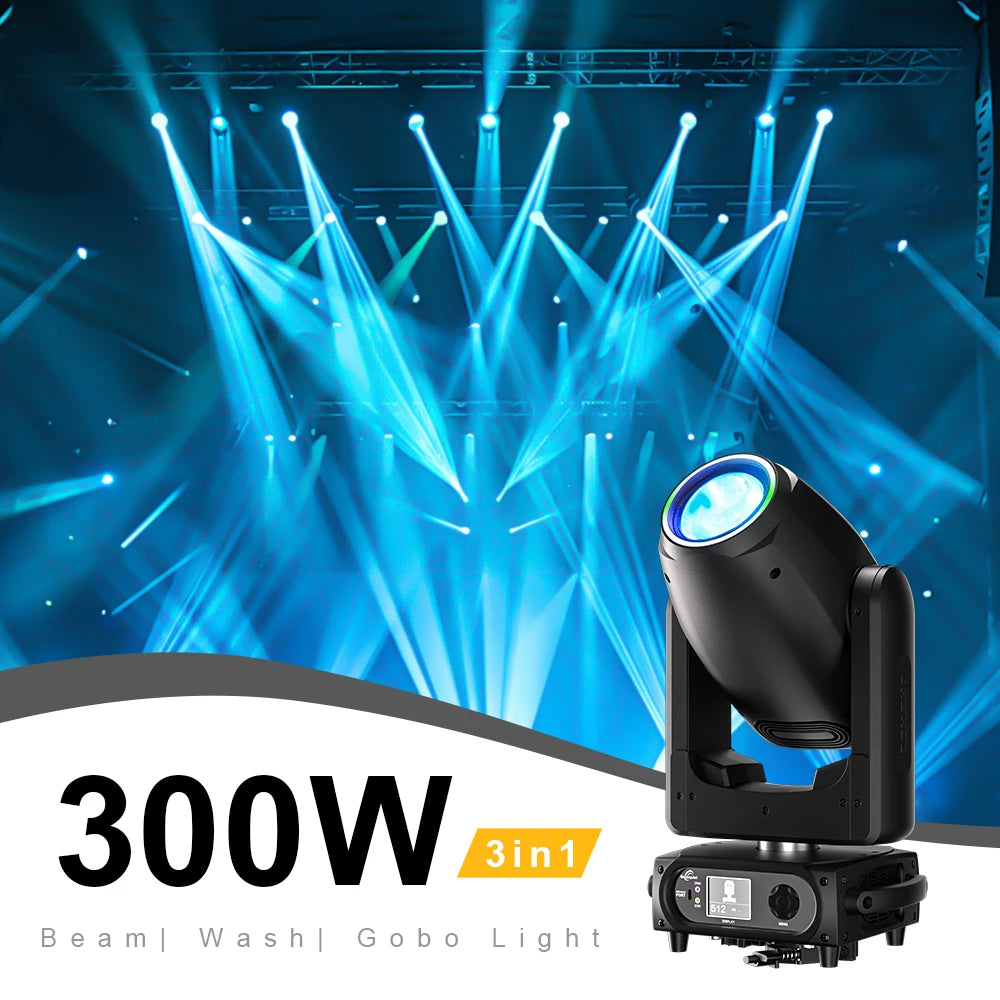

300W 3in1 Moving Head Light

Light source parameters
Light source:	300W LED white color
Color Temperature:	9000K
Luminous lumens/5m:	55000 lx/5m
Beam Angel:	2.2°~22°
Lifespan light source:	20000h
Diameter of the outgoing lens:	100mm
Dimming:	0-100% linear dimming
CRI:	Min.Ra 70
Optical effect
Gobos 1:	5 gobos + Flame pattern + Open
Gobos 2:	7 Gobos rotating +Open
Colors:	9 colors + Open
Prism 1:	5 prism
Frost:	Simple frost
Security System
Safety Item	Over current and voltage protection
Degree Of Protection	IP20
Operating Temperature	-15℃~45℃
Interface And Control System
Control Interface	3-pin and 5-pin XLRIn/Out
DMX Channel	20/23CH
Power Interface	PowerCon
Cooling System
Cooling Method	Air cooled
Structure	120mm plug-in heat dissipation layer
Bentilation Fan	60mm fan Inx2 & outx2
Power Consumption
Working Power	100~240V AC 50/60HZ
Power Consumption	Max 300W
Physical Parameters
Product Size	30x22x58cm / 11.8x8.6x22.8inch
Product Weight	14.6 Kg
Pack Size	59x41x38.5cm/23.2x16.1x15.1inch
Package Weight	17.54 kg

Applicable Scene

Suitable for large-scale stage performances such as professional theaters, concerts, and concerts,

as well as various occasions such as wedding celebrations, corporate annual meetings, product launches, etc.

Its powerful beam effect, flexible adjustment ability, high brightness,

and long-distance illumination ability enable it to achieve the best results in various scenes,

adding a bright color to your activities.

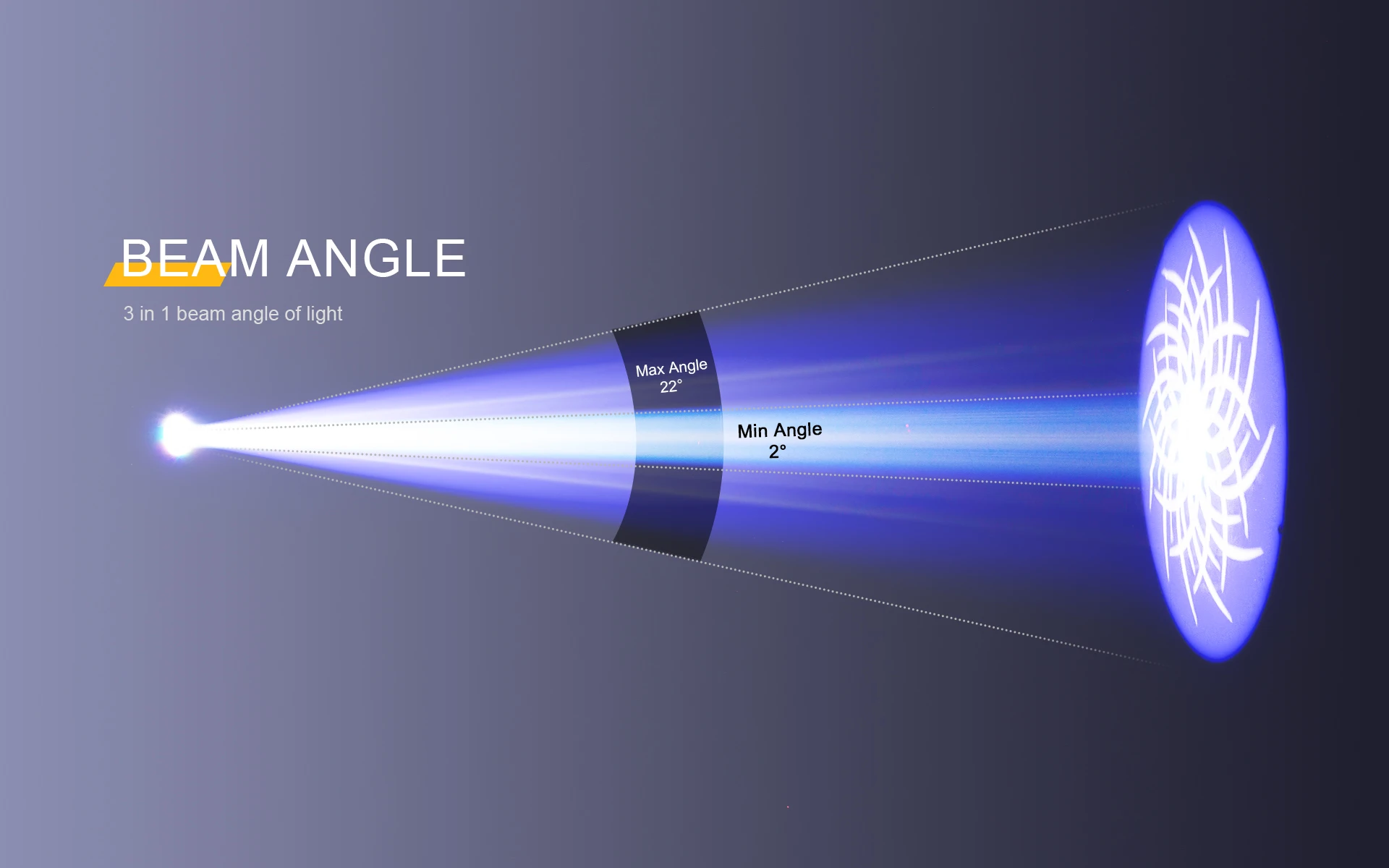

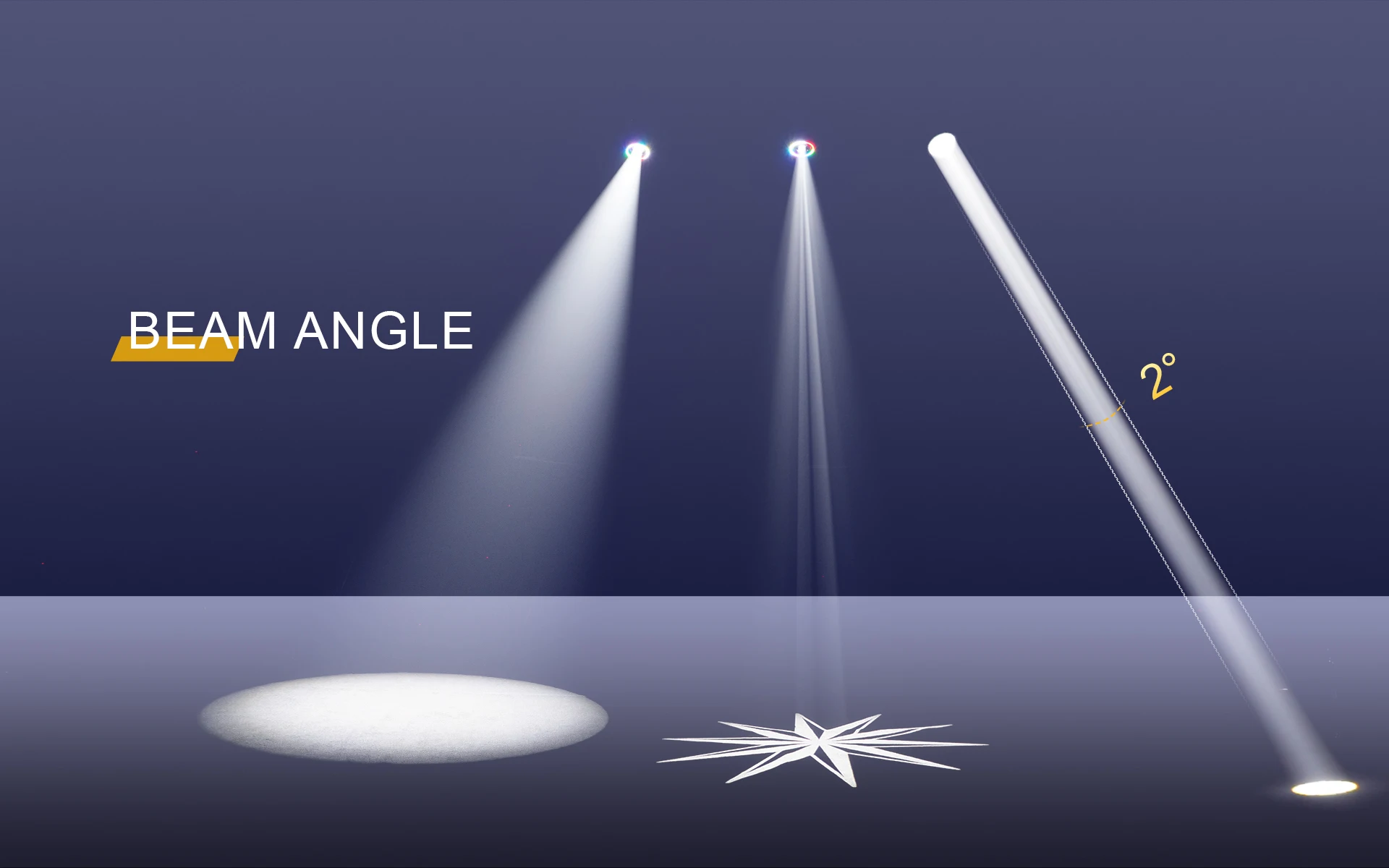

Beam Angle

The high brightness LED module, flexible shaking mechanism,

and precise optical design not only enhance the professionalism and artistry of stage lighting with a 2 ° ~22°beam angle for 3in1 moving head light , 2° for beam moving head light

but also provide a broader space for expression and creative possibilities for performance creators.

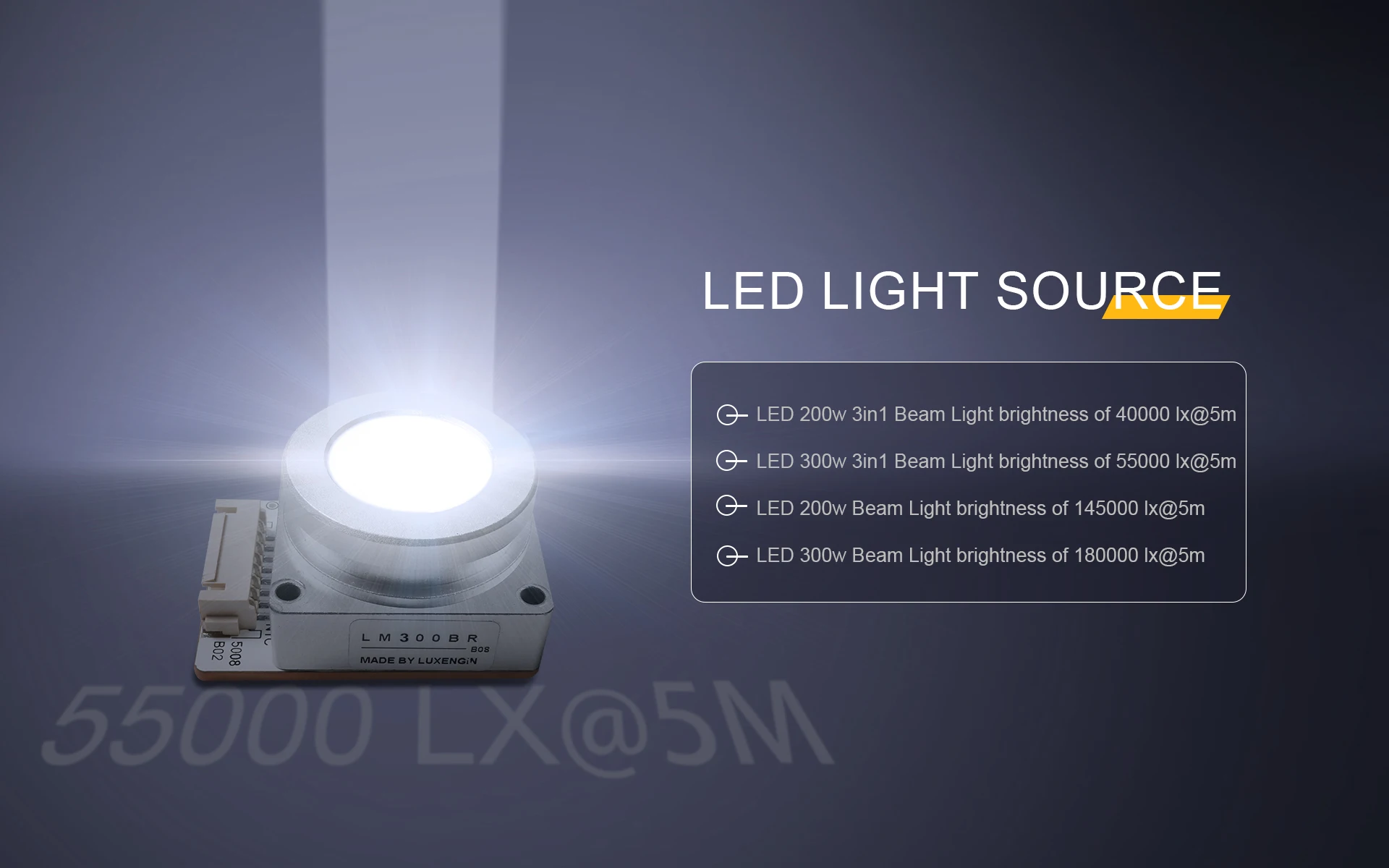

LED Light Source

The high brightness LED module adopts high-quality LED chips and packaging technology, with a brightness of 44000lx/5m, meeting various lighting and display needs.

Having lower energy consumption and higher energy efficiency helps reduce energy consumption and environmental pollution.

It has good stability and reliability, and can maintain stable luminous effects in various harsh environments.

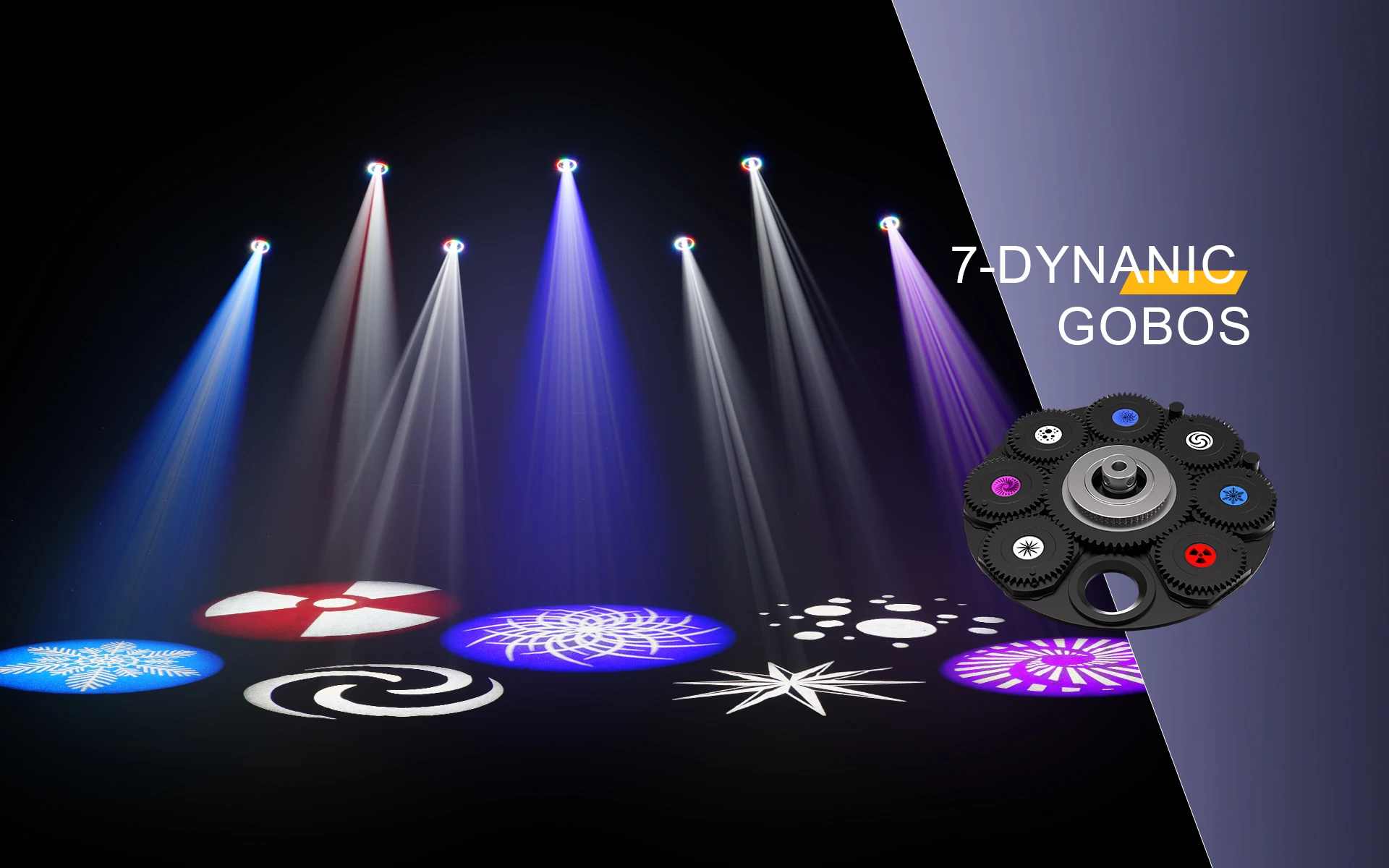

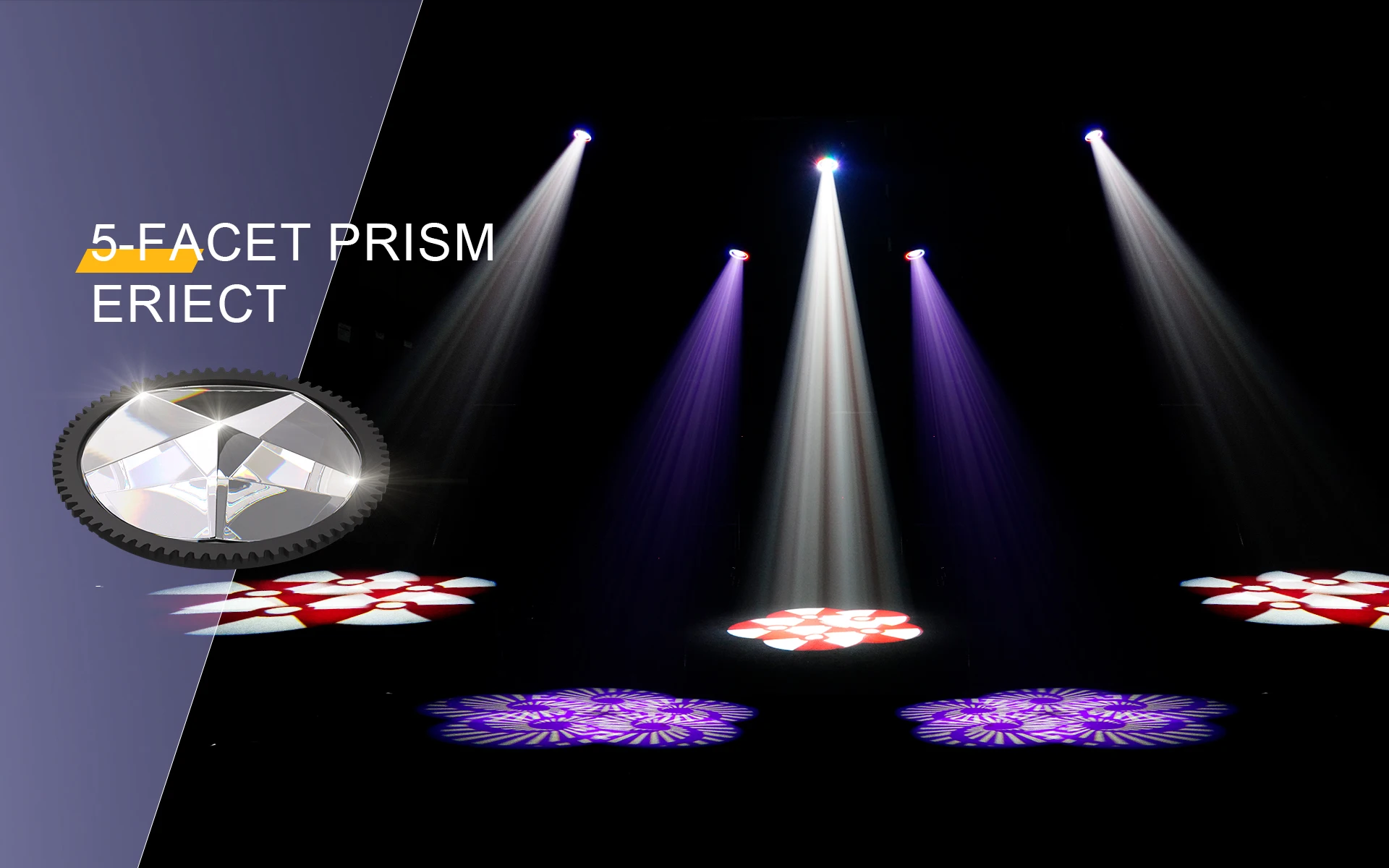

Effect

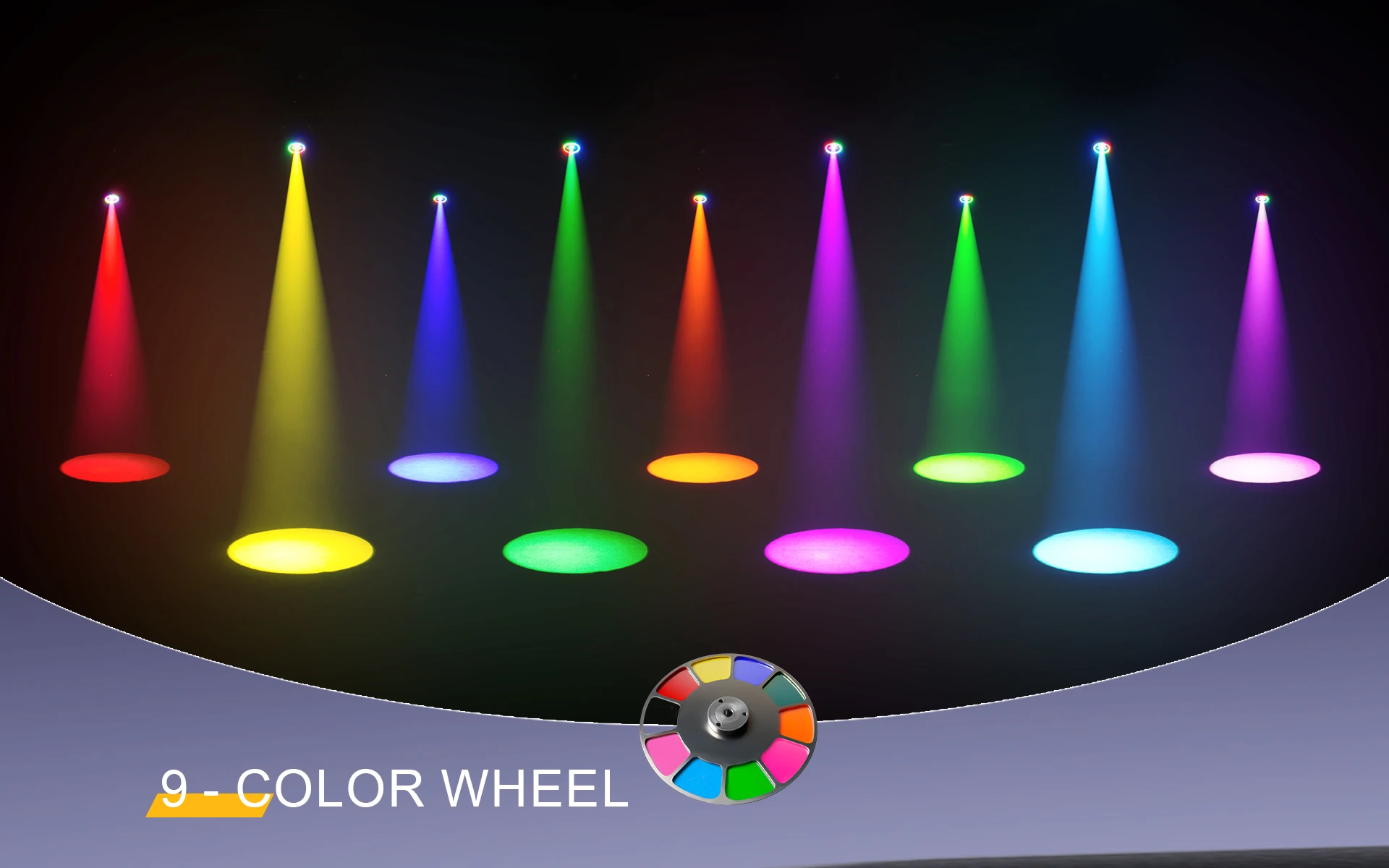

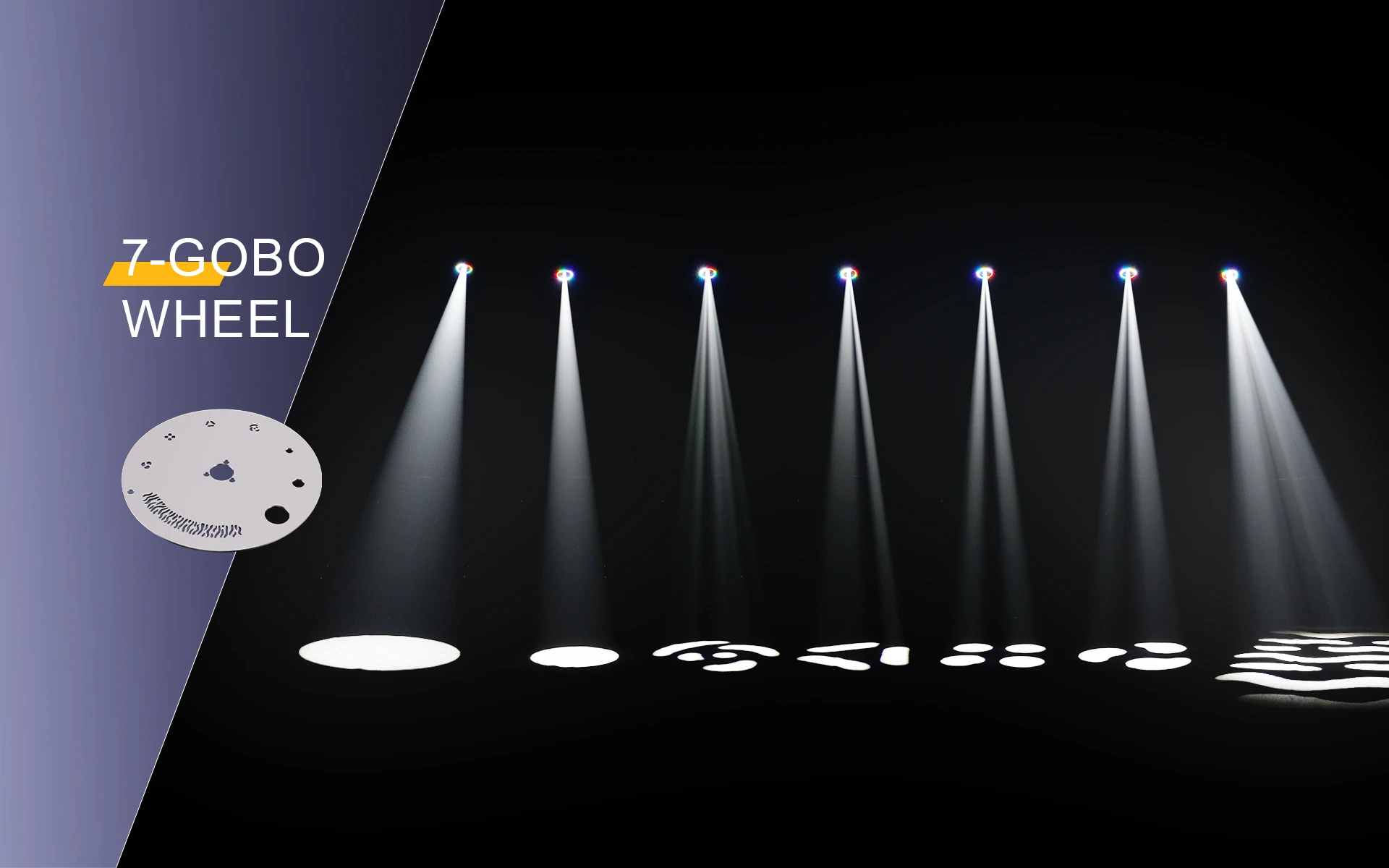

The combination of 7 gobos + Flame pattern + Open, 7 Gobos rotating、9 colors , 5 prism,  and Simple frost,

and wonderful performance of the rainbow disc bring the ultimate light and shadow effect to the stage performance.

The flexible application and combination of these effects not only enrich the visual level of the stage,

but also enhance the infectiousness and artistic expression of the performance.

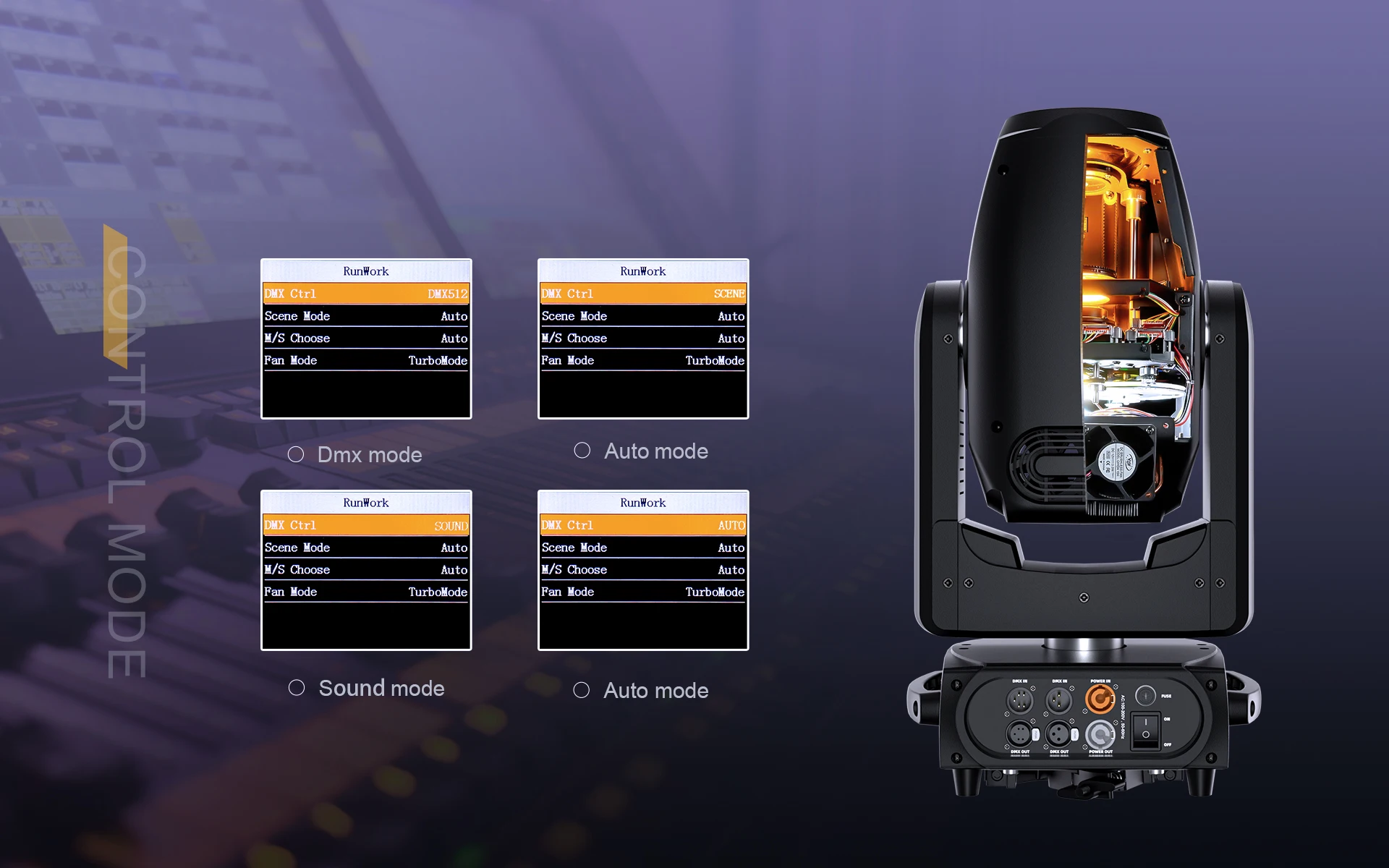

Control Mode

Supports multiple control modes such as DMX512, automatic, voice control, and manual programming,

with built-in carefully designed lighting effect presets. With just one click,

it can present a rich and colorful stage atmosphere, greatly simplifying the lighting layout process and suitable for rapidly changing performance scenes. Adapt to multiple user groups!

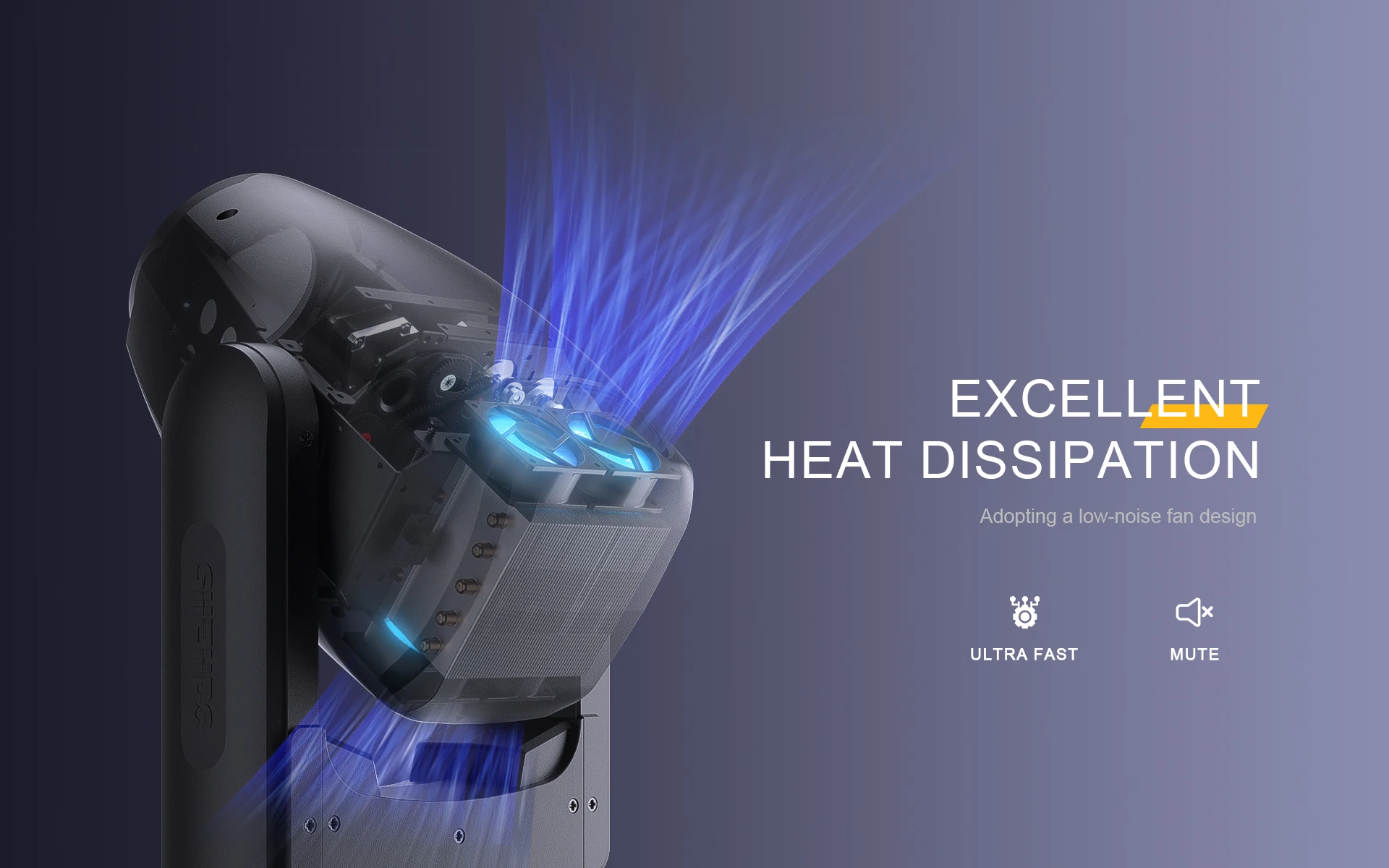

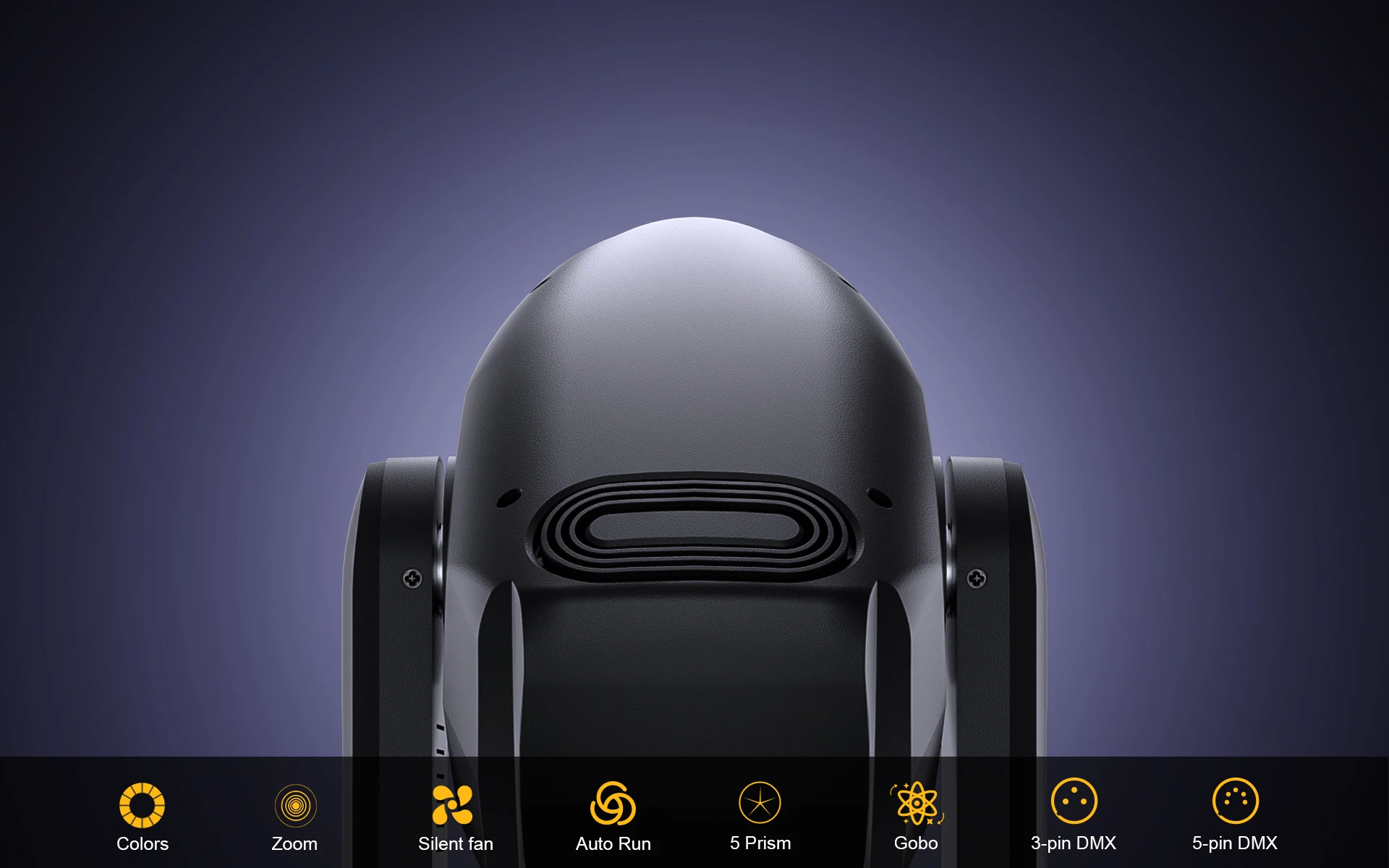

Split Heat Dissipation

Adopting a low-noise fan design and optimized airflow channel layout,

it achieves efficient heat dissipation while minimizing operating noise.

Even in high-end applications that are sensitive to noise,

it can maintain a quiet and comfortable lighting environment, allowing for uninterrupted focus and relaxation.

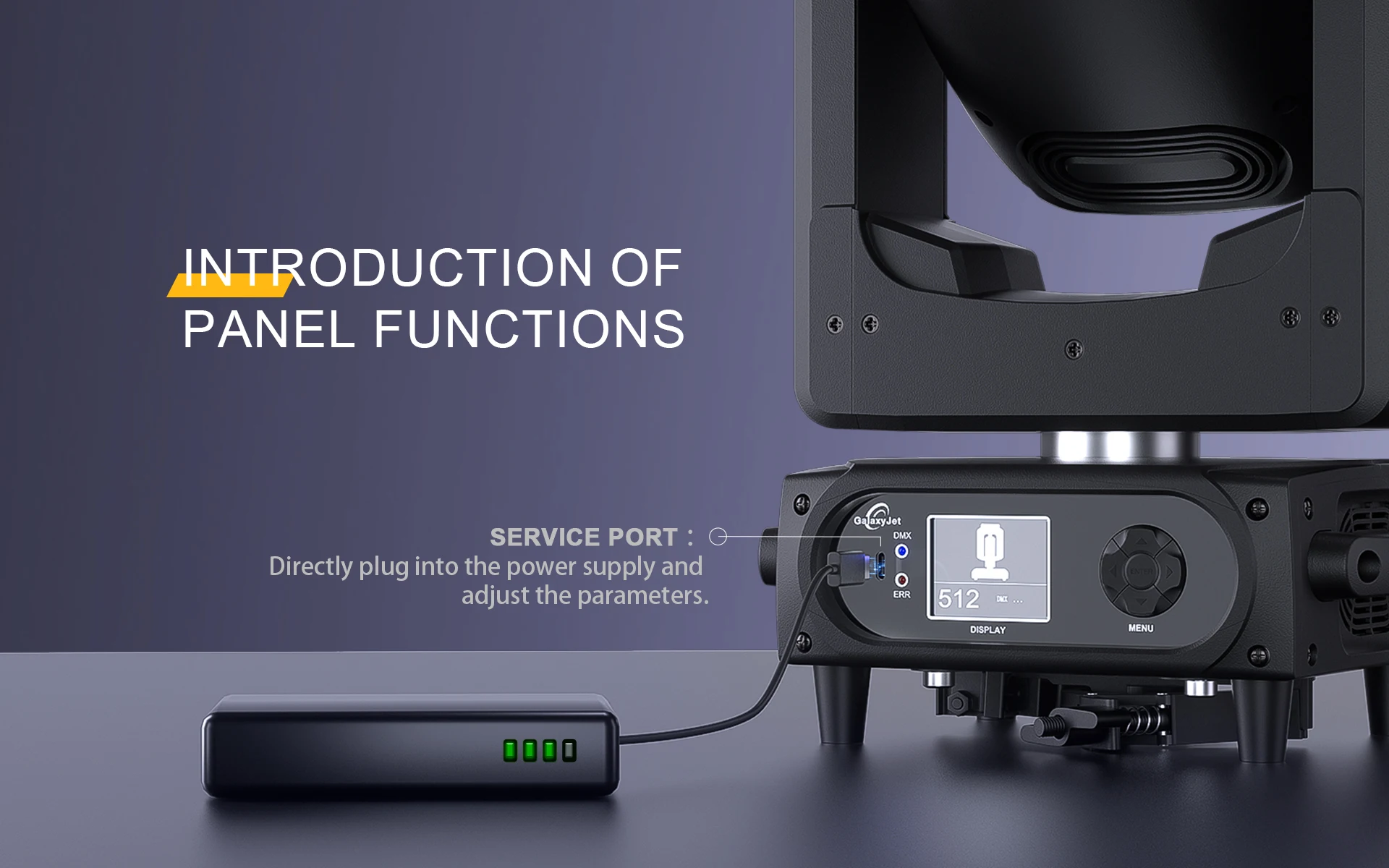

Introduction To Panel Functions

High pixel display screen makes operation more convenient and intuitive.

Real time temperature feedback function: Real time display of temperature data inside the lamp through the display screen.

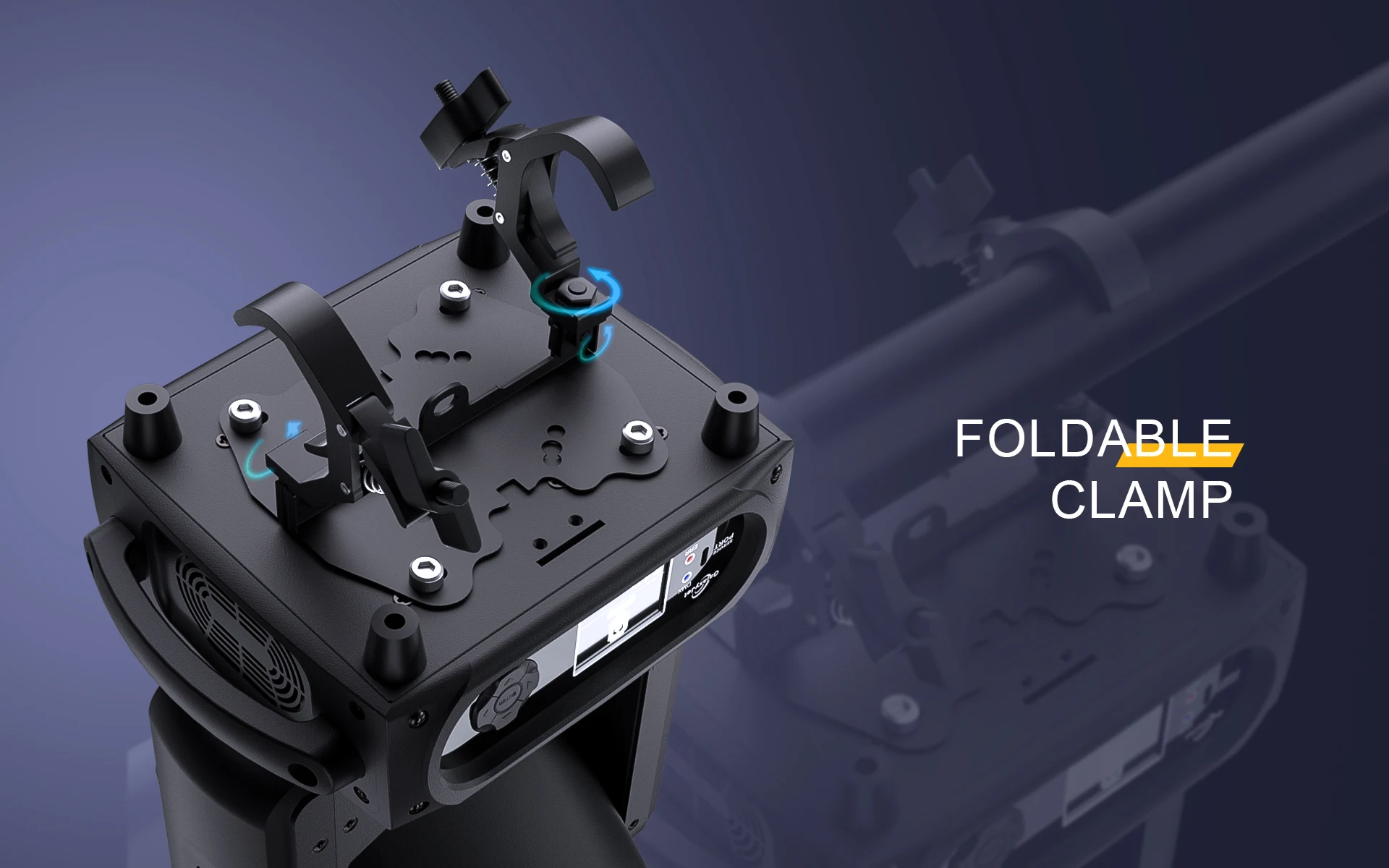

Foot Stand And Knob

The integrated folding suspension installation structure and unique folding design make the installation process unprecedentedly easy.

No complex tools or professional skills are required, and installation can be completed in just a few simple steps, greatly saving installation time and cost.

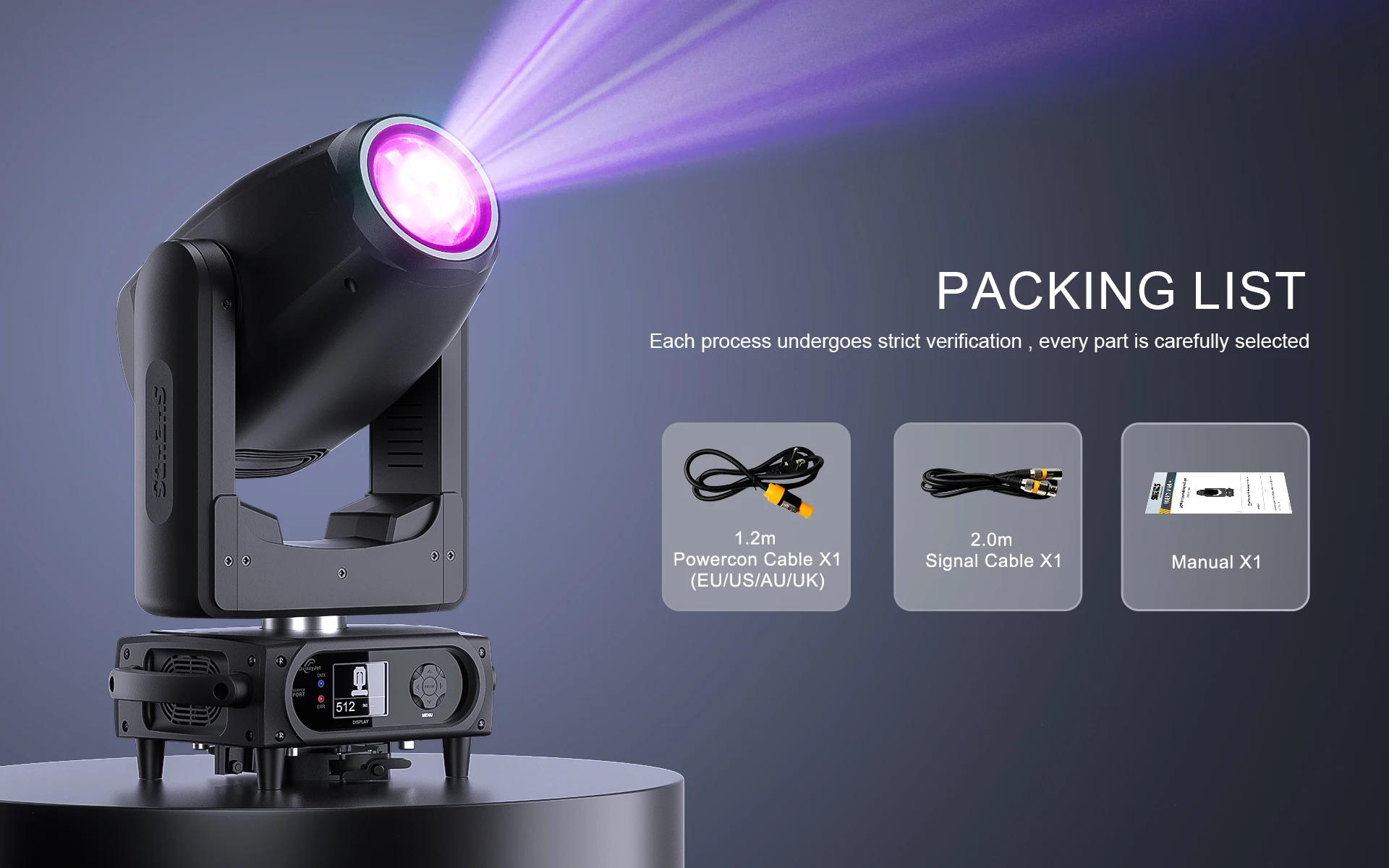

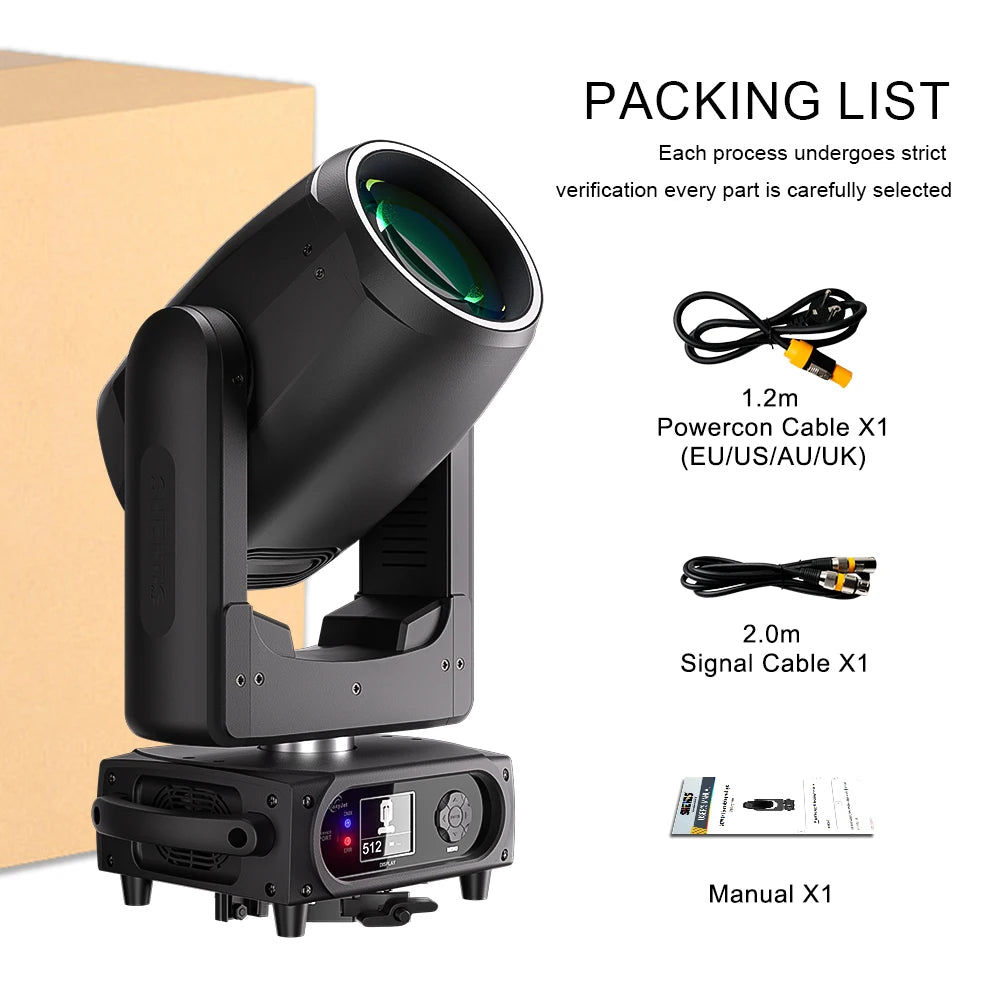

Packing List

Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.

Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.

Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,

bringing you an excellent using experience.

Qualification Certificate

Our products comply with international safety standards and environmental requirements.

They have multiple voltage options to meet differentvoltage around the world.

In addition, we also provide comprehensive after-sales service and technical support to ensure that any problems you encounter during use can be promptly and effectively resolved.
